Summary

The following Knowledge Base article assumes there is only 2 nodes in a single Intelligence Server cluster that is connected to the Web Server.  In a clustered Intelligence Server environment, there may be multiple Intelligence Servers of which the user can potentially connect.  Even if one server from the cluster is specified in the getSessionState task, the servers will still be properly load balanced by the environment and the user will connect to the next Intelligence Server up for a session based on the Load Balance Factor specified on the Strategy Web Administrator page.  The following custom task created below will bypass the out of the cluster logic to allow session creation on the Intelligence Server node specified.  In the below logic, the Intelligence Server specified will be the node that is still connected to the Web Server.



Using the Web Customization Editor to create a plug-in

Strategy SDK provides a Web Customization Editor that can be used to create a customization plug-in. The following steps show how to create the plug-in and deploy.

• Launch the Web Customization Editor .
• Create a new plug-in and give it a meaningful name. For example: BypassClusteringTask.
  (For step by step instructions on creating a new plug-in, please navigate to Web SDK » Customizing Strategy Web » Web Customization Editor » Features and Customizable Settings » Creating a New Plug-in in the MicroStrategy Developer Zone ).
• Click in Strategy Web Configuration inside the Application Settings view to expand the hierarchical tree. The expanded list comprises the different settings that can be modified to perform customizations.
• Right-mouse click Tasks and select New Task to launch the Task Creation Wizard.
• Select radio button for Create a Task by writing a Java class only. Click Next.
• Click Browse... next to the Source folder text field to select the src folder and click OK.

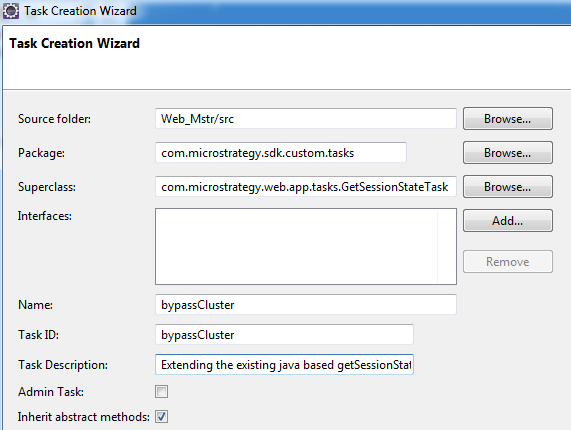

• Enter the following information for the rest of the text fields:

• Package: com.Strategy.sdk.custom.tasks
• Superclass: com.Strategy.web.app.tasks.GetSessionStateTask
• Name: bypassCluster
• Task ID: bypassCluster
• Task Description: Extending the existing java based getSessionState task to bypass clustering.
• AdminTask: unchecked
• Inherit abstract methods: checked

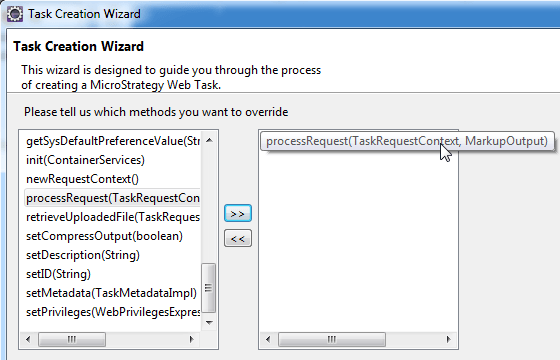

• Choose processRequest(TaskRequestContext context, MarkupOutput out) to override. Click Finish.


• bypassCluster.java opens in the editor.
• Add the following code to the processRequest method:


•
       public void processRequest(TaskRequestContext context, MarkupOutput out) throws TaskException {
          WebObjectsFactory factory = null;
          WebIServerSession serverSession = null;

          try {
              // This task assumes that there is at least one node running and connected to the Web Server.
              out("entering processRequest");

              // Step 1. Determine if all nodes in the cluster are running.  If yes, then run task as usual (call super)
              String serverName = ""; // This variable will contain the Intelligence Server to be connected to (could be an array if needed).
              WebClusterAdmin admin = WebObjectsFactory.getInstance().getClusterAdmin();

              admin.refreshAllClusters();
              Enumeration <?> clusters = admin.getClusters().elements();

              out("# Intelligence Server Clusters connected: " + admin.getClusters().size());
              // If the size of the cluster is max (all nodes connected), run task per usual
              if (admin.getClusters().size()==2) {
                  out("Returning Super");
                  super.processRequest(context, out);
                  return;
              }

              // Step 2. If one node is down, then manually create the Session and update the TaskOutput accordingly.
              // Iterate through all clusters and output nodes connected to the Web Server
              if (clusters.hasMoreElements()) {
                  WebCluster cluster = (WebCluster) clusters.nextElement();

                  out("Cluster size: " + cluster.size());

                  // Iterate through each cluster
                  for (int i = 0; i < cluster.size(); i++) {
                      out("     Name of Node " + i + ": " + cluster.get(i).getNodeName());
                  }

                  // Save one of the nodes in the cluster into the serverName variable.
                  // Assuming that there is only 1 cluster, 2 nodes, the following will capture the node that is connected
                  serverName = cluster.get(0).getNodeName();
              }
                  // Create factory object
                  factory = WebObjectsFactory.getInstance();
                  serverSession = factory.getIServerSession();
                  // Set up session properties
                  serverSession.setServerName(serverName); //Should be replaced with the name of an Intelligence Server
                  serverSession.setServerPort(Integer.parseInt(context.getRequestKeys().getValue(PARAM_NAME_PORT)));
                  serverSession.setProjectName(context.getRequestKeys().getValue(PARAM_NAME_PROJECT)); //Project where the session should be created
                  serverSession.setLogin(context.getRequestKeys().getValue(PARAM_NAME_LOGIN)); //User ID
                  serverSession.setPassword(context.getRequestKeys().getValue(PARAM_NAME_PASSWORD)); //Password
                  serverSession.setAuthMode(Integer.parseInt(context.getRequestKeys().getValue(PARAM_NAME_AUTH_MODE))); //Password
                  // ** FLAG TO BYPASS CLUSTER: documentation here  **
                  serverSession.setSessionFlags(EnumDSSXMLSessionFlags.DssXmlSessionBypassClustering);

                  out(serverSession.getSessionID());
                  String minSessionState = serverSession.saveState(EnumWebPersistableState.MINIMAL_STATE_INFO);
                  String maxSessionState = serverSession.saveState(EnumWebPersistableState.MAXIMAL_STATE_INFO);
                  String sessionInfo = serverSession.saveState(EnumWebPersistableState.TYPICAL_STATE_INFO);
                  String projectID = serverSession.getProjectID();

                  // XML output using the XMLBuilder class
                  XMLBuilder xmlbuilder = new XMLBuilder();
                  xmlbuilder.addChild("session-states-custom");
                  xmlbuilder.addChild("min-state").addText(minSessionState);
                  xmlbuilder.addSibling("max-state").addText(maxSessionState);
                  xmlbuilder.addSibling("session-info").addText(sessionInfo);
                  xmlbuilder.addSibling("project-id").addText(projectID);
                  xmlbuilder.closeAll();
                  out.append(xmlbuilder);

          } catch (TaskException e) {
              e.printStackTrace();
          } catch (WebObjectsException e) {
              e.printStackTrace();
          }

      }



• out method defined here:


•
  public void out(String msg) {
  		System.out.println(msg);
  	}



• As a reference, the following were the imported classes:


•
  import java.util.Enumeration;
  import com.Strategy.utils.serialization.EnumWebPersistableState;
  import com.Strategy.utils.xml.XMLBuilder;
  import com.Strategy.web.app.tasks.GetSessionStateTask;
  import com.Strategy.web.beans.MarkupOutput;
  import com.Strategy.web.objects.WebCluster;
  import com.Strategy.web.objects.WebClusterAdmin;
  import com.Strategy.web.objects.WebIServerSession;
  import com.Strategy.web.objects.WebObjectsException;
  import com.Strategy.web.objects.WebObjectsFactory;
  import com.Strategy.web.tasks.TaskException;
  import com.Strategy.web.tasks.TaskRequestContext;
  import com.Strategy.webapi.EnumDSSXMLSessionFlags;



• Save the file.
• Return to the to the Application Settings view to expand the hierarchical tree.  Navigate to and right-click on Tasks >> getSessionState and select Modify Class to launch the Modify Task Class Wizard.

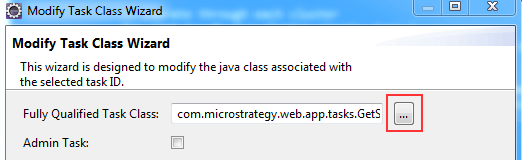

• Click on the icon with the 3 dots:

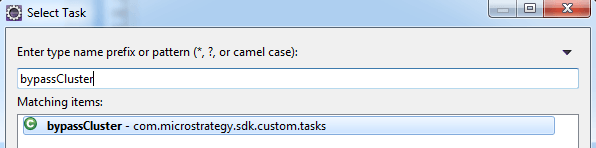

• Select the custom class created in steps 5-13:


• Click Ok. Click Finish.
• Restart the Web Server for the new Task to take effect.

Note: This task will only override out of the box getSessionState task if there is only 1 node of a 2-node cluster connected to the Web Server.  If both nodes (of a 2-node cluster are connected to the Web Server, the original getSessionState task will execute.
