KB441533: How to Create a Trust Store with the Certificate Chain of SSL/TLS Secured MicroStrategy Components

Retrieve Root and Intermediate Certificates from the Server Certificate

Server certificates can be reviewed from any browser by navigating to the site and viewing the server certificate through the browser. It is highly recommended to use Firefox, which has the explicit download as chain option.

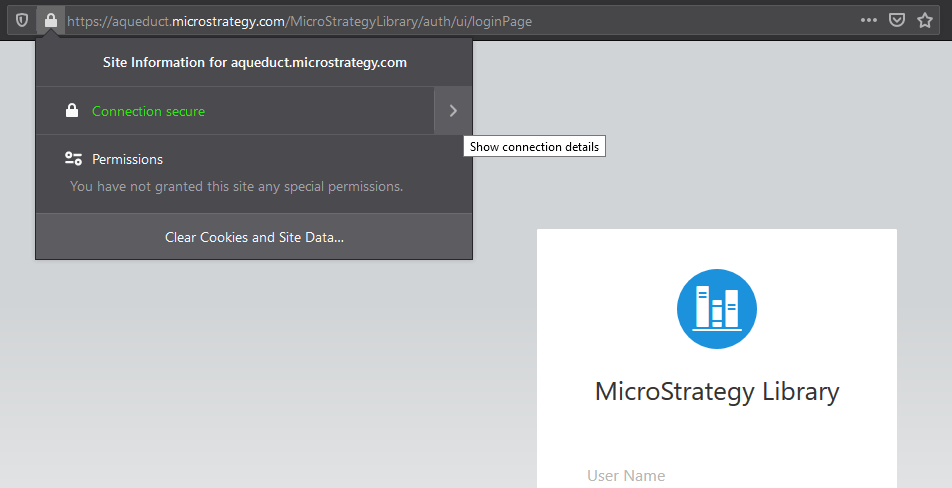

• Navigate to an URL hosted by the machine you wish to obtain certificates from. In many cases, you will navigate to your Strategy Library URL or loadbalancer URL. Click on the Lock icon to the left of URL and choose Show Connection Details.

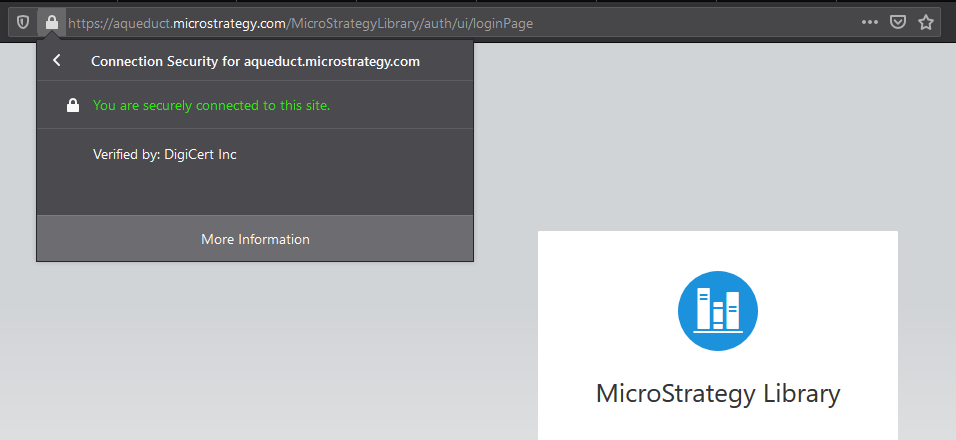

• Click on More Information to view the certificate.


• Depending on the version of Firefox you are using, different menus appear. Newer versions will open up a new tab in your browser.
  A certificate chain may contain one or more certificates.

• The top most certificate is called CA root certificate. In this example it is from DigiCert Global Root.
• Child certificates of the root certificate are called intermediate certificates. In this example it is Thawte RSA.
• The bottom certificate is the leaf server certificate itself, issued to server *.Strategy.com

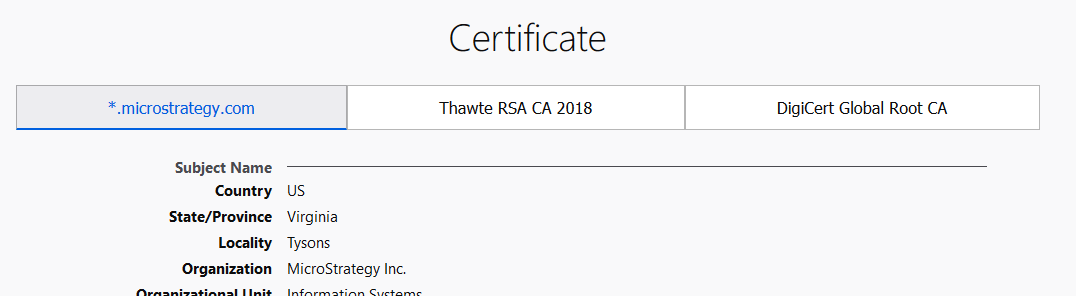

• Notice there are multiple tab buttons in the page, each listing information for leaf and root certificates, going from left to right. Be sure you are on the left-most leaf certificate.

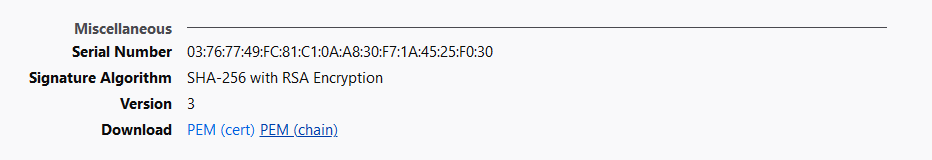

• Scroll down to the Miscellaneous section, where there are download links. click PEM (Chain).

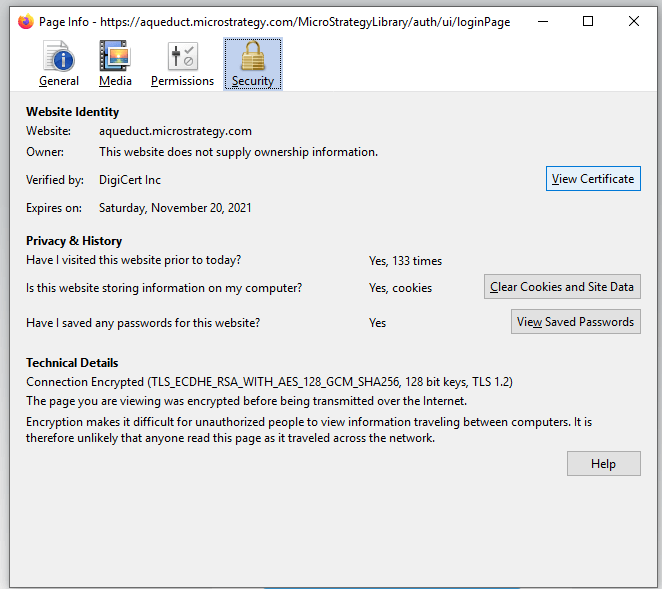

• If you are using an older version of Firefox, a popup appears. Click View Certificate

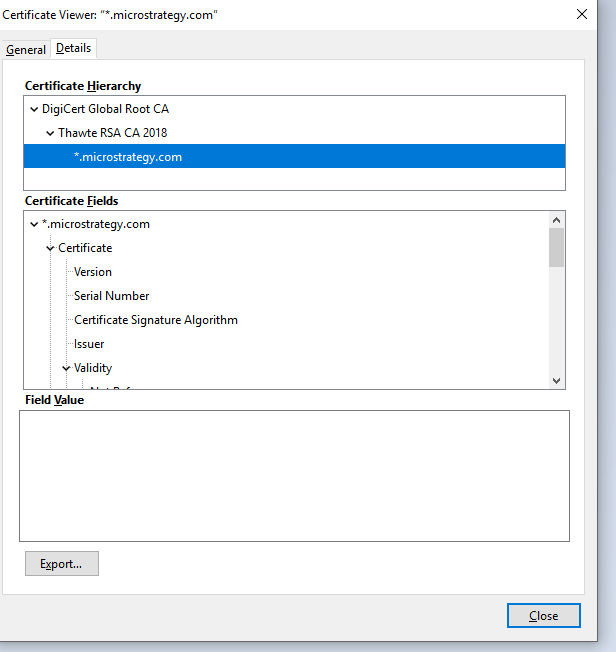

• Switch to the Details tab. The certificate hierarchy of root to leaf certificates appears. Be sure to select the lowest leaf certificate.

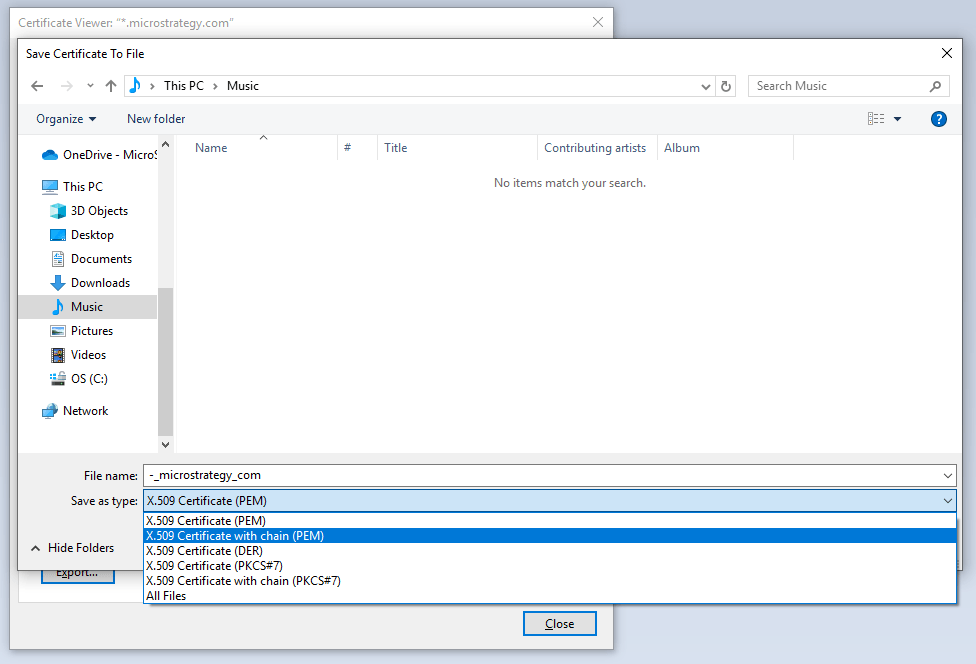

• Click the Export button. Select your desired save location and change the Save as type to X.509 Certificate with chain (PEM).


Generating Keystore

To enable TLS, you need to generate the keystore file for machine hosting the collaboration server. You must have the openssl library installed.

1. Open a command prompt or Bash shell.
2. Run the following commands. Your password can be anything, but in this procedure, we use the same password for simplicity: mstr123. This procedure uses collabsvc.



   openssl genrsa -des3 -passout pass:mstr123 -out collabsvc.key 2048





   openssl req -new -passin pass:mstr123 -key collabsvc.key -out collabsvc.csr



3. You run through the certificate request creation prompts. In Common Name, make sure you use a machine name where the Collaboration Service is installed.
   Example:



   You are about to be asked to enter information that will be incorporated
   into your certificate request.
   What you are about to enter is what is called a Distinguished Name or a DN.
   There are quite a few fields but you can leave some blank
   For some fields there will be a default value,
   If you enter '.', the field will be left blank.
   -----
   Country Name (2 letter code) [AU]:US
   State or Province Name (full name) [Some-State]:VA
   Locality Name (eg, city) []:Tysons Corner
   Organization Name (eg, company) [Internet Widgits Pty Ltd]:MSTR
   Organizational Unit Name (eg, section) []:Web
   Common Name (e.g. server FQDN or YOUR name) []:mac-qfan
   Email Address []:qfan@Strategy.com

   Please enter the following 'extra' attributes
   to be sent with your certificate request
   A challenge password []:mstr123
   An optional company name []:Strategy



4. Run the following command:



   openssl x509 -req -passin pass:mstr123 -days 1024 -in collabsvc.csr -signkey collabsvc.key -out collabsvc.crt



5. Run the following command:



   openssl pkcs12 -export -in collabsvc.crt -inkey collabsvc.key -out collabsvc.pfx


   This step prompts you for the password you used earlier during the creation of the files.

6. Your final keystore file is called collabsvc.pfx. We suggest you copy it into the same directory as the Collaboration Server's config.json file.
