KB484521: How to encrypt the passwords stored in tomcat-users.xml used to access the MicroStrategy Web Admin page

Description

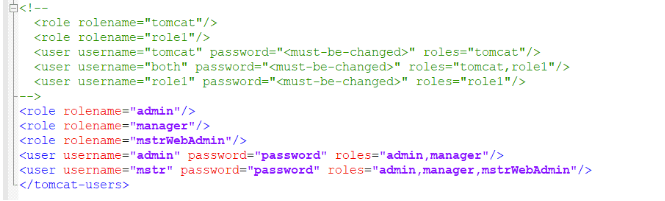

By default, Tomcat utilizes basic authentication to protect and control access to certain pages such as the Strategy Web Admin page. These credentials are stored as plain text in the

tomcat-users.xml

conf

To enhance the security of Tomcat, the passwords stored in the

tomcat-users.xml

Why is this happening?

This is the default configuration of Tomcat.

Solution

The below steps can be followed to encrypt the passwords stored in the

 tomcat-users.xml

• Make sure the environmental variable JRE_HOME (or JAVA_HOME) is correctly set. The default path on a 2020 Update 2 Windows machine will be

  C:\Program Files (x86)\Common Files\Strategy\JRE\180_252\Win64.

• Edit Tomcat’s

  server.xml

  . If using Tomcat installed as part of the Strategy installation on a Windows machine, the default location will be

  C:\Program Files (x86)\Common Files\Strategy\Tomcat\apache-tomcat-9.0.30\conf.

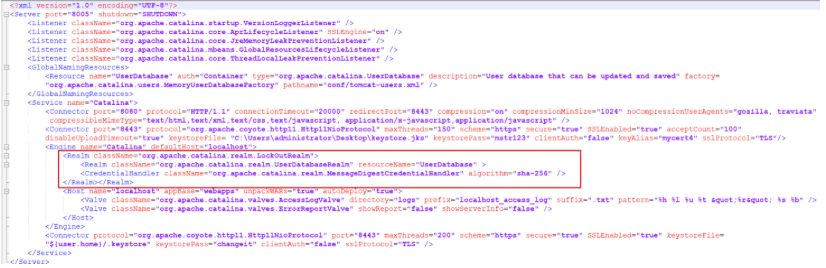

• Modify the

  server.xml

  to match the below screenshot. The following entry will need to be added, and the

  /

  after “

  UserDatabase

  ” will need to be removed.



  <CredentialHandler className="org.apache.catalina.realm.MessageDigestCredentialHandler" algorithm="sha-256" /></Realm>





• Save

  server.xml.

• Open Command Prompt and navigate to Tomcat’s bin folder and go to Tomcat's bin folder (

  C:\Program Files (x86)\Common Files\Strategy\Tomcat\apache-tomcat-9.0.30\bin

  ).
• Run the following command where MyPassword is the actual password to be encrypted and

  sha-256

  is the algorithm specified in step 3.



  digest.bat -a sha-256 -h org.apache.catalina.realm.MessageDigestCredentialHandler MyPassword


  Note: For Linux, the following command can be used:

  digest.sh -a sha-256 -h org.apache.catalina.realm.MessageDigestCredentialHandler MyPassword

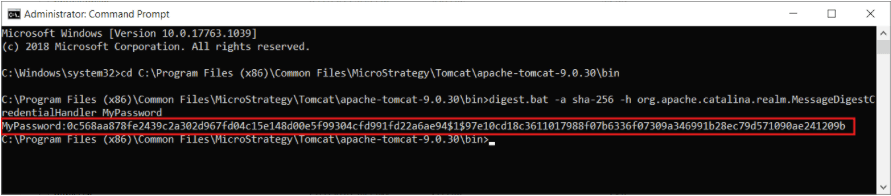

• The output will be in the format

  <clear text pwd>:<encrypted pwd>

  . For example,

  MyPassword:0c568aa878fe2439c2a302d967fd04c15e148d00e5f99304cfd991fd22a6ae94$1$97e10cd18c3611017988f07b6336f07309a346991b28ec79d571090ae241209b

  as seen below.

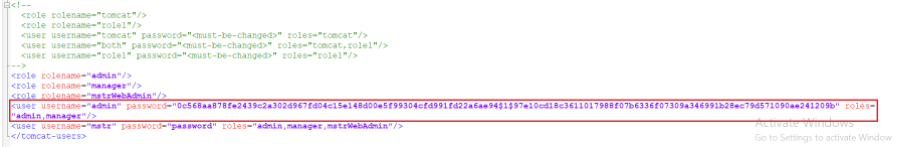

• Copy the encrypted password and place it in

  tomcat-users.xml

  .


• Restart Tomcat.
