KB10007: Multiple rows are displayed for a single attribute element at the report level when a lower-level metric is included on the template in MicroStrategy.

Stefan Zepeda

Salesforce Solutions Architect • Strategy

Multiple rows are displayed for a single attribute element at the report level when a lower-level metric is included on the template in MicroStrategy.

SYMPTOM:Using the MicroStrategy Tutorial project to reproduce this issue, create a report as follows:

Metric: Count(Customer) {~} -- this metric exists out-of-the-box as Count of Customers

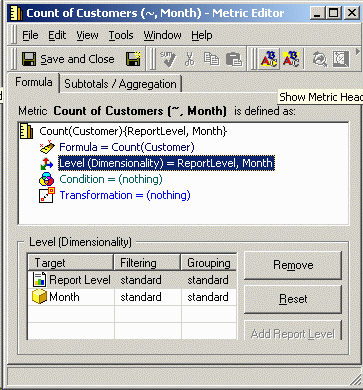

Metric: Count(Customer) {~, Month}

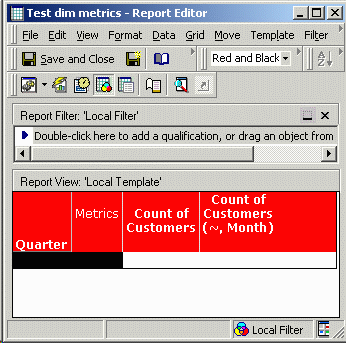

Report: Quarter, Count of Customers, Count of Customers (month level):

Executing this report yields the following unexpected result:

Not only are there three rows for every quarter, the monthly values do not add up to the quarterly values (18,905 + 18,905 +18,905 = 52,715, not 46,045).

Executing the report SQL directly against the warehouse yields the following, more logical, results:

QUARTER_ID	QUARTER_DESC	WJXBFS1	WJXBFS2
20001	Q1 00	46045	12845
20001	Q1 00	46045	14295
20001	Q1 00	46045	18905
20002	Q2 00	61690	18354
20002	Q2 00	61690	21516
20002	Q2 00	61690	21820
20003	Q3 00	36181	8331
20003	Q3 00	36181	12539
20003	Q3 00	36181	15311
20004	Q4 00	67965	13758
20004	Q4 00	67965	20160
20004	Q4 00	67965	34047
20011	Q1 01	29888	8401
20011	Q1 01	29888	9009
20011	Q1 01	29888	12478
20012	Q2 01	57891	15551
20012	Q2 01	57891	20940
20012	Q2 01	57891	21400
20013	Q3 01	37893	9387
20013	Q3 01	37893	12563
20013	Q3 01	37893	15943
20014	Q4 01	69976	15054
20014	Q4 01	69976	22800
20014	Q4 01	69976	32122

Here, the monthly values add up (12,845 + 14,295 + 18,905 = 46,045). Note that the value repeated in the MicroStrategy report is the largest value of the monthly metric for each quarter.

CAUSE:If the VLDB property "Dimensionality model" is set to "Use dimensional model," the report will behave in this way. In the dimensional model, metrics calculated at a level lower than the report level will be calculated exactly as defined, producing the unusual results shown above.

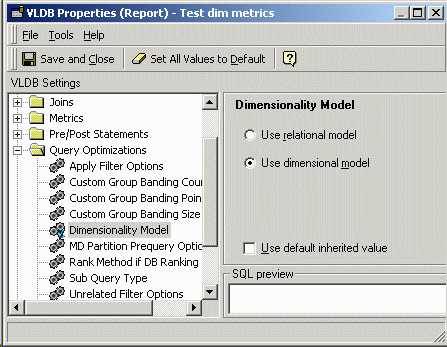

In the VLDB property editor, go into the Tools menu and select "Show Advanced Settings" for this property to be visible, as shown below:

The dimensional model is included for backward compatibility with MicroStrategy 6.x. In MicroStrategy 7i, new methods were introduced to evaluate the calculation level of metrics which prevent the incorrect result demonstrated in this document. For new installations of MicroStrategy 8.x, "Use relational model" is selected by default. In general, there should not be any need to change this setting.

Further information on when the dimensional model should be used may be found in the MicroStrategy documentation: Admin.pdf > VLDB Settings > VLDB properties > Query Optimizations > Dimensionality Model.

The report SQL shows that the first metric is calculated at the level of Quarter (report level), while the second metric is at the level of Month, as specified in the metric definition. When these results are joined, there will be one row in the final result for each month. However, the month ID is not selected because Month is not on the template.

Dimensional model SQL

Relational model SQL

select a14.QUARTER_ID QUARTER_ID,
   count(a12.CUSTOMER_ID) WJXBFS1
into #ZZMD00
from LU_ORDER a12
   join ORDER_DETAIL a13
     on (a12.order_id = a13.order_id)
   join LU_DAY a14
     on (a13.ORDER_DATE = a14.DAY_DATE)
group by a14.QUARTER_ID
select a14.MONTH_ID MONTH_ID,
   count(a12.CUSTOMER_ID) WJXBFS1
into #ZZMD01
from LU_ORDER a12
   join ORDER_DETAIL a13
     on (a12.order_id = a13.order_id)
   join LU_DAY a14
     on (a13.ORDER_DATE = a14.DAY_DATE)
group by a14.MONTH_ID
select distinct pa1.QUARTER_ID QUARTER_ID,
   a12.QUARTER_DESC QUARTER_DESC,
   pa1.WJXBFS1 WJXBFS1,
   pa2.WJXBFS1 WJXBFS2
from #ZZMD01 pa2
   join LU_MONTH a11
     on (pa2.MONTH_ID = a11.MONTH_ID)
   join #ZZMD00 pa1
     on (a11.QUARTER_ID = pa1.QUARTER_ID)
   join LU_QUARTER a12
     on (pa1.QUARTER_ID = a12.QUARTER_ID)
drop table #ZZMD00
drop table #ZZMD01

select   a14.QUARTER_ID QUARTER_ID,
   count(a12.CUSTOMER_ID) WJXBFS1
into #ZZMD00
from   LU_ORDER   a12
   join   ORDER_DETAIL   a13
     on    (a12.order_id = a13.order_id)
   join   LU_DAY   a14
     on    (a13.ORDER_DATE = a14.DAY_DATE)
group by   a14.QUARTER_ID
select   a14.QUARTER_ID QUARTER_ID,
   count(a12.CUSTOMER_ID) WJXBFS1
into #ZZMD01
from   LU_ORDER   a12
   join   ORDER_DETAIL   a13
     on    (a12.order_id = a13.order_id)
   join   LU_DAY   a14
     on    (a13.ORDER_DATE = a14.DAY_DATE)
group by   a14.QUARTER_ID
select   pa1.QUARTER_ID QUARTER_ID,
   a11.QUARTER_DESC QUARTER_DESC,
   pa1.WJXBFS1 WJXBFS1,
   pa2.WJXBFS1 WJXBFS2
from   #ZZMD00   pa1
   join   #ZZMD01   pa2
     on    (pa1.QUARTER_ID = pa2.QUARTER_ID)
   join   LU_QUARTER   a11
     on    (pa1.QUARTER_ID = a11.QUARTER_ID)
drop table #ZZMD00
drop table #ZZMD01

When MicroStrategy formats the report for display, it expects that the attribute keys in the final result pass will be unique. When it finds multiple rows with the same attribute keys, it resolves the conflict by selecting the largest value of metrics with different values and replicating them across all the rows sharing a common key.

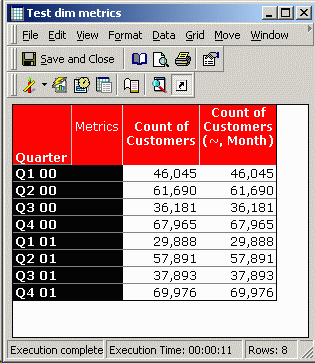

When "Use relational model" is chosen for the Dimensionality model VLDB property, the month-level metric's level will be calculated instead at Quarter level, because Quarter is the lowest level attribute in the time hierarchy present on the report. In this scenario, the results will appear as follows:

ACTION:Change the "Dimensionality model" VLDB property to "Use relational model."

Alternately, if it is required to display both monthly and quarterly data, ensure that the 'Month' attribute (the child attribute) is also on the template.
