KB11122: What is the “Downward Outer Join” VLDB property in MicroStrategy SQL Generation Engine?

"Downward outer join" refers to a solution implemented in MicroStrategy for performing an outer join between metrics calculated at different dimensionalities while ensuring data integrity.

In MicroStrategy it is possible to generate outer joins between metrics at different levels, but there was the possibility of report results that could vary in ways outside the user's control if a straight outer join was performed.

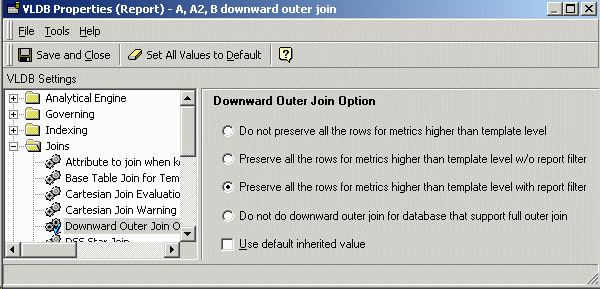

To address this issue, a VLDB property called "Downward Outer Join" should be used. It has the following five options:

• Do not preserve all the rows for metrics higher than template level (default).
• Preserve all the rows for metrics higher than template level without report filter.
• Preserve all the rows for metrics higher than template level with report filter.
• Do not do downward outer join for databases that support full outer join.
• Do not do downward outer join for databases that support full outer join, and order temp tables in last pass by dimensionality.

This document describes the first three downward outer join settings. For more information on the "Do not do downward outer join" settings, review the following MicroStrategy Knowledge Base document:

• KB11123 - What is the "Do not do downward outer join" VLDB property in MicroStrategy SQL Generation Engine?

Downward Outer Join
 When performing a simple outer join between three or more intermediate tables of different dimensionalities, the final result depends on the order in which the tables are joined. "Downward outer join" is an algorithm that eliminates this ambiguity by adjusting the dimensionality of higher-level metrics downward, to match report level dimensionality.

To illustrate, consider the following three intermediate tables:

Each table contains elements not present in the other two tables. To join all of them and preserve all the rows, outer joins will be necessary.

Full outer joining the tables in the order pa1, pa2, pa3 renders the correct results. For the Northeast and South regions, there are three quarters between the first two tables combined. The same number of units sold is expected to appear for each of these quarters, since Units Sold is calculated in pa3 without respect to Quarter:

select   coalesce(pa1.REGION_ID, pa2.REGION_ID, pa3.REGION_ID) REGION_ID,
   a12.REGION_NAME REGION_NAME,
   coalesce(pa1.QUARTER_ID, pa2.QUARTER_ID) QUARTER_ID,
   a11.QUARTER_DESC QUARTER_DESC,
   pa1.WJXBFS1 WJXBFS1,
   pa2.WJXBFS1 WJXBFS2,
   pa3.WJXBFS1 WJXBFS3
from   pa1
   full outer join   pa2
    on    (pa1.REGION_ID = pa2.REGION_ID and
      pa1.QUARTER_ID = pa2.QUARTER_ID)
   full outer join   pa3
    on    (coalesce(pa1.REGION_ID, pa2.REGION_ID) = pa3.REGION_ID)
   left outer join   LU_QUARTER   a11
    on    (coalesce(pa1.QUARTER_ID, pa2.QUARTER_ID) = a11.QUARTER_ID)
   left outer join   LU_REGION   a12
    on    (coalesce(pa1.REGION_ID, pa2.REGION_ID, pa3.REGION_ID) = a12.REGION_ID)
order by 1, 3

Joining the tables in the order pa1, pa3, pa2 causes the Units Sold values to be omitted for rows where there is a value for Cost in pa2 but not in pa1:



select   coalesce(pa1.REGION_ID, pa2.REGION_ID, pa3.REGION_ID) REGION_ID,
   a12.REGION_NAME REGION_NAME,
   coalesce(pa1.QUARTER_ID, pa2.QUARTER_ID) QUARTER_ID,
   a11.QUARTER_DESC QUARTER_DESC,
   pa1.WJXBFS1 WJXBFS1,
   pa2.WJXBFS1 WJXBFS2,
   pa3.WJXBFS1 WJXBFS3
from   pa1
   full outer join   pa3
    on    (pa1.REGION_ID = pa3.REGION_ID)
   full outer join   pa2
    on    (coalesce(pa1.REGION_ID, pa3.REGION_ID) = pa2.REGION_ID and
      pa1.QUARTER_ID = pa2.QUARTER_ID)
   left outer join   LU_QUARTER   a11
    on    (coalesce(pa1.QUARTER_ID, pa2.QUARTER_ID) = a11.QUARTER_ID)
   left outer join   LU_REGION   a12
    on    (coalesce(pa1.REGION_ID, pa2.REGION_ID, pa3.REGION_ID) = a12.REGION_ID)
order by 1, 3

Considering the Northeast region only, in the first query, after joining pa1 and pa2 first (both at the level of Region and Quarter), three elements for Quarter are available: Q2 02, Q3 02, and Q4 02. There is only one value in pa3 for Northeast, and that value is copied across all three quarters for that region.

In the second query, joining directly from pa1 to pa3 means that only Q2 02 and Q3 02 (the Quarter elements from pa1) are available to receive the Northeast value from pa3. Subsequently joining to pa2 introduces a new element for Quarter. However, the join to pa3 is already done, and the database will not retroactively look to pa3 and copy the Units Sold value again. As a result, there is a missing value in the final result table.

When joining "upward" (that is, from a lower level table with more attribute keys and more detail to a higher-level table with fewer keys and less detail), the higher-level metric values can be propagated across only those elements for the lower-level attributes that already exist in the final result. For data integrity, it is necessary to ensure that all attribute elements exist in the final result before joining in metric values calculated at a level higher than the template level.

Because cross-dimensional outer joins could produce different results, even for different executions of the same report, MicroStrategy does not allow simple outer joins to or from metrics higher than template level by default.

Note: Users may create reports with metrics higher than template level, and they may set the metric join type in Report Data Options to outer join, but the SQL engine will treat these metrics as if they were set to inner join.



The "Downward Outer Join" VLDB property allows higher-level metrics to be outer joined by constructing a table of all necessary attribute elements to be included early in the join path.

The downward outer join pass performs a cross join between the higher-level metric pass and the lookup table(s) for the attribute(s) included in the report level dimensionality that are not present in the metric's dimensionality. This is the only certain way to guarantee that all the needed attribute elements are present in the downward outer join table.

Because of the cross join against the lookup table, report results may be prohibitively large when there are lower-level attributes with a large number of elements. In the example below, there is no report filter; as a result, all the elements of the Quarter attribute are shown, even when none of the report-level metrics contain data.

Note: Users are strongly encouraged to use the report filter to restrict the number of elements for attributes that are not present in all the metric dimensionalities.



The following report uses the downward outer join setting with the above intermediate tables. The metric calculation passes are not shown, only the downward outer join pass and final result pass:

select   a11.QUARTER_ID QUARTER_ID,
   pa3.REGION_ID REGION_ID
into #ZZOG03
from   #ZZMD02   pa3
   cross join   LU_QUARTER   a11

select   coalesce(pa1.REGION_ID, pa4.REGION_ID) REGION_ID,
   a12.REGION_NAME REGION_NAME,
   coalesce(pa1.QUARTER_ID, pa4.QUARTER_ID) QUARTER_ID,
   a11.QUARTER_DESC QUARTER_DESC,
   pa1.WJXBFS1 WJXBFS1,
   pa2.WJXBFS1 WJXBFS2,
   pa3.WJXBFS1 WJXBFS3
from   #ZZMD00   pa1
   full outer join   #ZZOG03   pa4
    on    (pa1.QUARTER_ID = pa4.QUARTER_ID and
   pa1.REGION_ID = pa4.REGION_ID)
   left outer join   #ZZMD01   pa2
    on    (coalesce(pa1.QUARTER_ID, pa4.QUARTER_ID) = pa2.QUARTER_ID and
   coalesce(pa1.REGION_ID, pa4.REGION_ID) = pa2.REGION_ID)
   left outer join   #ZZMD02   pa3
    on    (coalesce(pa1.REGION_ID, pa4.REGION_ID) = pa3.REGION_ID)
   left outer join   LU_QUARTER   a11
    on    (coalesce(pa1.QUARTER_ID, pa4.QUARTER_ID) = a11.QUARTER_ID)
   left outer join   LU_REGION   a12
    on    (coalesce(pa1.REGION_ID, pa4.REGION_ID) = a12.REGION_ID)

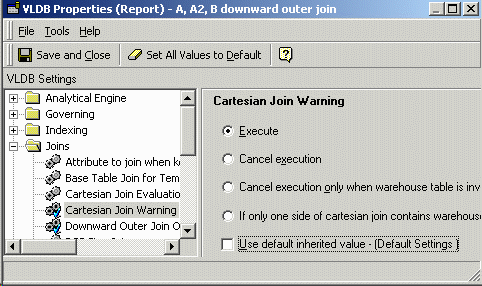

Note: Because of the cross join, the Cartesian join warning VLDB property must be disabled for reports using the standard downward outer join:

The cross-join-to-lookup approach does expand the result set, but it also guarantees that all the metric values will be preserved, even when there are more than two metric dimensionalities.

It is also the only approach that will work reliably for reports that have more than two metrics, none of which are at report level. Recall that full outer joining intermediate passes at different dimensionalities requires all the needed attribute elements to be obtained before joining upward to higher-level metrics.

When there are no report level metrics, producing this "master list" of attribute elements is not algorithmically possible without additional user input. Thus, when there are no report level metrics on the report and outer joins are required, the standard downward outer join described in this article should be used.

For more information on bypassing the standard downward outer join algorithm and using simple full outer joins between metrics at different dimensionalities, consult the following MicroStrategy Knowledge Base document:

• KB11123 - What is the "Do not do downward outer join" VLDB property in MicroStrategy SQL Generation Engine?
