KB12159: “[DFCSCHEMA] Population Exception: The object shown in the following hierarchy no longer exists in the schema: -Relation-TableObject is not found in DFCSchema during DFC conversion” error is generated when attempting to update the schema

• Strategy

“[DFCSCHEMA] Population Exception: The object shown in the following hierarchy no longer exists in the schema: -Relation-TableObject is not found in DFCSchema during DFC conversion” error is generated when attempting to update the schema

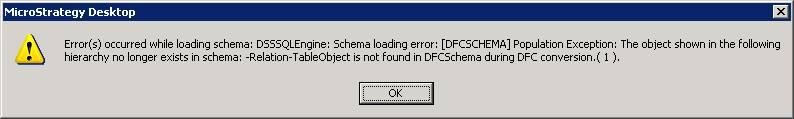

When attempting to update the schema, users receive the following error message:


Error(s) occurred while loading schema: DSSSQLEngine: Schema loading error: Population Exception: The object shown in the following hierarchy no longer exists in the schema: -Relation-TableObject is not found in DFCSchema during DFC conversion. ( 1 ).

ScanMD will provide the following error:


Error Type 12: Error : Attribute {Attribute Name} BaseForm {#} is not supported by its lookup table {Table Name}. No recommended action: Fix not implemented yet. Please check {Attribute Name}'s definition in Strategy Desktop.

CAUSE:

Either there is no primary lookup table defined for the specified attribute form, or the defined primary lookup table does not have a structure that allows it to be the primary lookup for the defined form expression.

ACTION:

Define a valid primary lookup table for the attribute form through the attribute form editor. After fixing the definition, the user should be able to update schema.

NOTE: It may be necessary to restart the Strategy Intelligence Server before updating the schema in 3-tier.

KB 000019177
