KB13371: Some outer joins are ignored in reports with multiple smart compound metrics in MicroStrategy SQL Generation Engine

SYMPTOM:

In the case of more than one smart compound metric on a report where the metric join type is set to 'outer join,' users may find that one or more outer joins that are expected in the SQL may be converted to inner joins in Strategy SQL Generation Engine. This may produce incorrect report results.

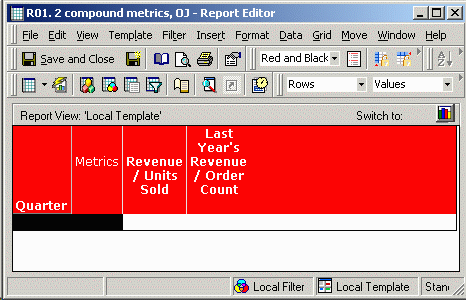

For example, consider the following report in the Strategy Tutorial project:

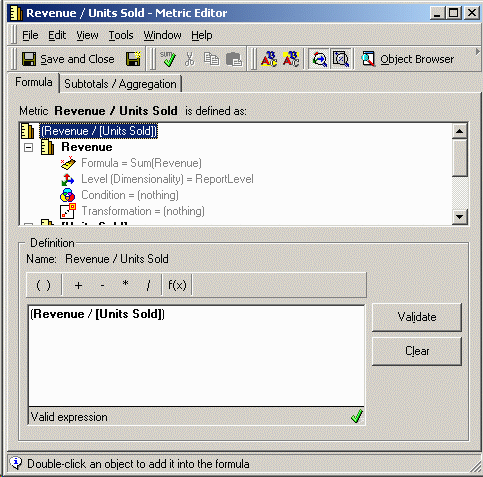

The two metrics 'Revenue / Units Sold' and 'Last Year's Revenue / Order Count' are defined as follows:

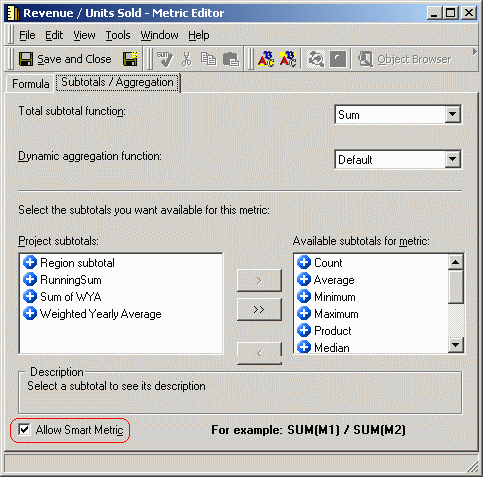

In addition, both metrics have the 'Allow Smart Metric' flag enabled, as shown below:

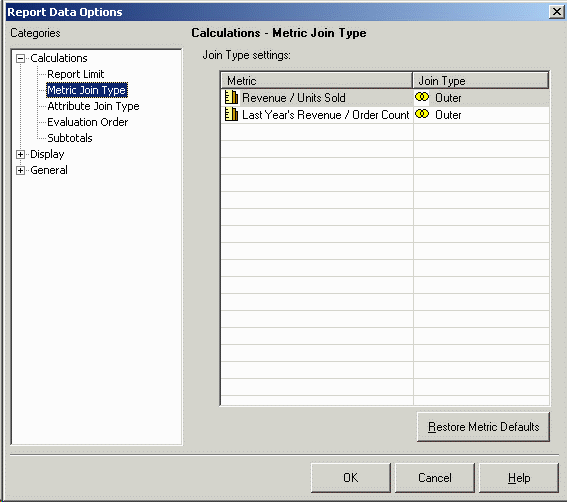

Finally, the report defines outer joins between both metrics. This dialog may be reached in the report editor by going to the Data menu and choosing 'Report Data Options', as shown below:



When SQL is generated for the report, it is expected that the metric calculation passes (#ZZMD00, #ZZMD01, #ZZMD02) will be joined with a full outer join. Instead, inner joins appear in each case, as shown below:

select   a12.QUARTER_ID QUARTER_ID,
   count(a11.ORDER_ID) WJXBFS1
into #ZZMD00
from   ORDER_FACT   a11
   join   LU_DAY   a12
    on    (a11.ORDER_DATE = a12.DAY_DATE)
group by   a12.QUARTER_ID
select   a11.QUARTER_ID QUARTER_ID,
   sum(a11.TOT_DOLLAR_SALES) WJXBFS1,
   sum(a11.TOT_UNIT_SALES) WJXBFS2
into #ZZMD01
from   QTR_CATEGORY_SLS   a11
group by   a11.QUARTER_ID
select   a12.QUARTER_ID QUARTER_ID,
   sum(a11.TOT_DOLLAR_SALES) WJXBFS1
into #ZZMD02
from   QTR_CATEGORY_SLS   a11
   join   LU_QUARTER   a12
    on    (a11.QUARTER_ID = a12.LY_QUARTER_ID)
group by   a12.QUARTER_ID
select   pa1.QUARTER_ID QUARTER_ID,
   a11.QUARTER_DESC QUARTER_DESC,
   pa1.WJXBFS1 WJXBFS1,
   pa2.WJXBFS1 WJXBFS2,
   pa2.WJXBFS2 WJXBFS3,
   pa3.WJXBFS1 WJXBFS4
from   #ZZMD00   pa1
   join   #ZZMD01   pa2
    on    (pa1.QUARTER_ID = pa2.QUARTER_ID)
   join   #ZZMD02   pa3
    on    (pa1.QUARTER_ID = pa3.QUARTER_ID)
   join   LU_QUARTER   a11
    on    (pa1.QUARTER_ID = a11.QUARTER_ID)

CAUSE:

This problem is the result of the 'Formula Join Type' setting in the smart compound metric definitions being set to 'inner join.'

Evaluation of smart compound metrics differs from non-smart metrics:


• Non-smart metrics perform the compound metric calculation in SQL on the database, and retrieve only the final result.
• Smart metrics retrieve the component metrics' values in SQL. The compound metric calculation is reserved for the Analytical Engine in Strategy Intelligence Server (or in Strategy Developer, in a three-tier connection).

The Metric Outer Join setting defined in Report Data Options controls how the final results of both simple and compound metrics will be joined in SQL. In the case of a pair of smart compound metrics, however, it is not the final metric results that are being joined in the SQL. It is rather the component metrics that are joined.

The setting to control the join between components of a compound metric is called 'Formula Join Type,' and is not accessible from the report editor. The setting exists in the metric editor, under the Tools menu -> Advanced Settings -> Formula Join Type. The Report Data Options setting does not affect the component metric joins.

ACTION:

Several possible resolutions are available, depending on the circumstance:


• Change the formula join type for each compound metric. This is appropriate if the metric should be outer joined in every circumstance. Note that if there are other metrics on the report whose report level metric join type is set to 'inner join,' the report SQL will reflect inner joins and left outer joins depending on the reporting scenario.
• Disable smart metric functionality for these metrics. This will affect the way the metrics are calculated and may not be valuafble in every case. In particular, subtotals of compound metrics involving multiplication or division are very likely to be incorrect without smart metric functionality.


• If smart metrics are required, another option is to have one copy of the metric where the formula join type is 'inner,' to be used on reports were in inner join is desired. Another copy with an outer join for the formula join type could be used on outer-join reports.
• Use OLAP Services to define explicitly the joins between the component metrics, as described in the following Strategy Knowledge Base article:


• KB12778  - Is it possible to set the metric join type to Outer Join at the report level for smart compound metrics in Strategy?

See also the following Strategy Knowledge Base article for a summary of the applicable metric outer join settings:
KB11111 - When are the metric join type and formula join type applicable in Strategy
