KB19022: How to display all elements of a custom group even if no data exist for one or more elements in MicroStrategy Engine

SYMPTOM:

A custom group is used on a report with one or more attributes. Based on other filtering conditions, some of the custom group elements will be empty (no data will be returned). These custom group elements are not displayed in the report results.

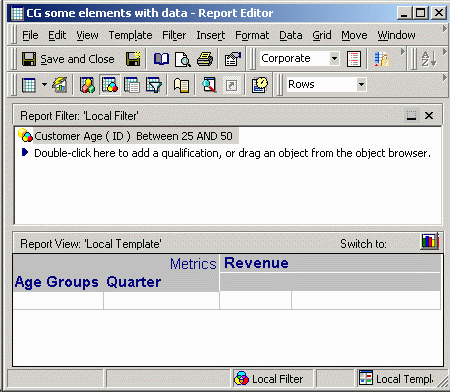

The issue may be illustrated in Strategy Tutorial using a report with the following construction:

• Rows: custom group Age Groups, attribute Quarter
• Columns: metric Revenue
• Filter: customer age@ID between 25 and 50

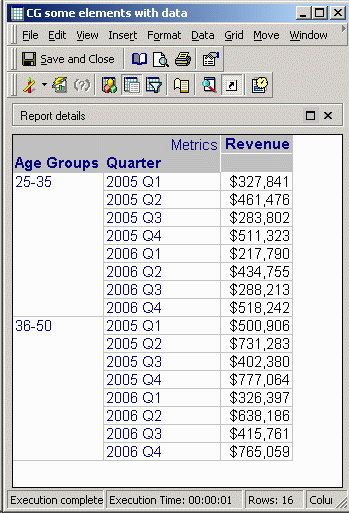

When this report is executed, only two custom group elements are displayed even though five elements are defined in the custom group.

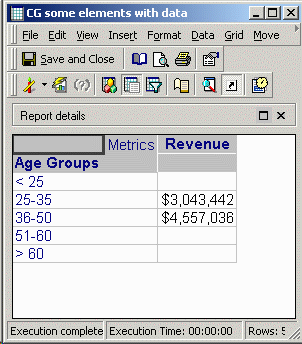

If the quarter attribute is removed from the template, all custom group elements are displayed, with empty metric values for the custom group elements that lie outside of the report filter.


CAUSE:

By design, custom group elements are displayed only if there is at least one row in the SQL results for that element.
Effectively, each custom group element is executed as if it were a separate report. Depending on the custom group's display options, one or two result tables are retrieved: one for the "grand total" of the custom group element, and another for the individual items within the element. The grand total result is evaluated at the level of other attributes on the template, excluding the level of the individual items.

When there are no attributes on the template, the grand total pass takes the following form, here for the "< 25" element.

select sum(a11.TOT_DOLLAR_SALES) WJXBFS1
from CUSTOMER_SLS a11
   join LU_CUSTOMER a12
      on (a11.CUSTOMER_ID = a12.CUSTOMER_ID)
where ((DATEPART(YEAR, GETDATE()) - DATEPART(YEAR, a12.CUST_BIRTHDATE)) between 25 and 50
   and (DATEPART(YEAR, GETDATE()) - DATEPART(YEAR, a12.CUST_BIRTHDATE)) < 25)

select a13.QUARTER_ID QUARTER_ID,
   max(a14.QUARTER_DESC) QUARTER_DESC,
   sum(a11.ORDER_AMT) WJXBFS1
from ORDER_FACT a11
   join LU_CUSTOMER a12
      on (a11.CUSTOMER_ID = a12.CUSTOMER_ID)
   join LU_DAY a13
      on (a11.ORDER_DATE = a13.DAY_DATE)
   join LU_QUARTER a14
      on (a13.QUARTER_ID = a14.QUARTER_ID)
where ((DATEPART(YEAR, GETDATE()) - DATEPART(YEAR, a12.CUST_BIRTHDATE)) between 25 and 50
   and (DATEPART(YEAR, GETDATE()) - DATEPART(YEAR, a12.CUST_BIRTHDATE)) < 25)
group by a13.QUARTER_ID

• Create a metric named M1 whose formula is Max(Quarter@ID) at report level dimensionality, with Standard grouping and Ignore filtering. Add this metric to the Report Objects window (it is not necessary to display it on the template). Substitute the template attribute for Quarter in this formula.
• In Report Data Options > Attribute Join Type, choose the third option, "Preserve lookup table elements joined to final pass result table based on template attributes without filter." This ensures that the result for every custom group element will include attribute elements, even if there are no metric values.
• Add a derived metric (Insert > New Metric) with the formula IF(IsNull(Revenue), 0, 1). Substitute one of the template metrics for Revenue.
• Add a second derived metric with the formula Max(NullToZero(M1)){} , where M1 is the metric created in step 1. This returns the highest quarter ID for which metric values exist across the entire report.
• Create the following conditions in the view filter (where Max Quarter ID is the derived metric created in step 4):
  Revenue Is Not Null
  OR
  Quarter Where ID Exactly Max Quarter ID

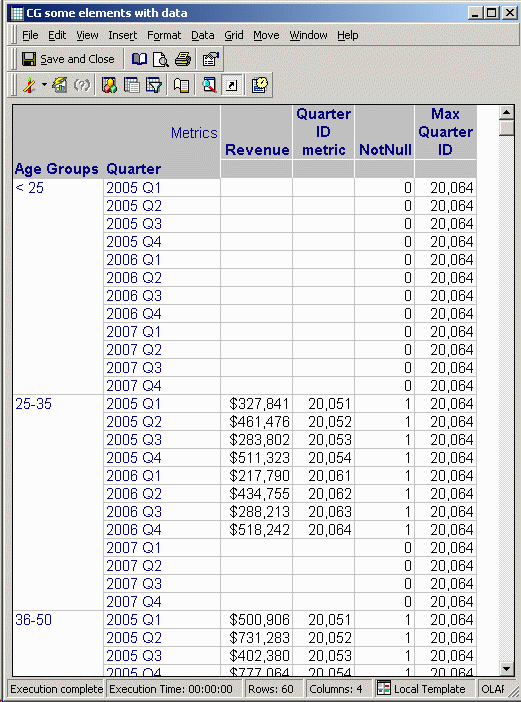

The following illustrations demonstrate how the workaround functions. Each custom group element now returns data, even if the metric results are empty throughout. The view filter on Revenue eliminates rows, such as 2007 Q1, that should be dropped from the result. Then, to keep one row for "empty" custom group elements, the Quarter view filter qualification preserves, for every element, the row corresponding to the latest Quarter that has a metric result anywhere in the report.

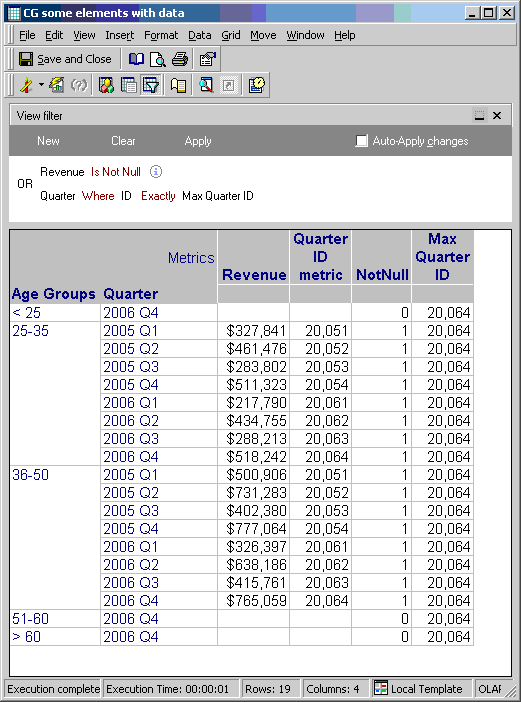

The final display, with view filtering qualification applied, follows. Note that the quarter ID metric and the two derived metrics do not have to be displayed on the template.


If the report has more than one attribute on the template, separate metrics and view filter conditions should be created for each attribute.
