KB320008: How to Change Search Result Icons For Specific Result Types When Using the Web Search in MicroStrategy Web 10.6

SUMMARY:
When using the search functionality in Strategy Web, each individual search result has an icon next to it. This is both in list view and grid view.

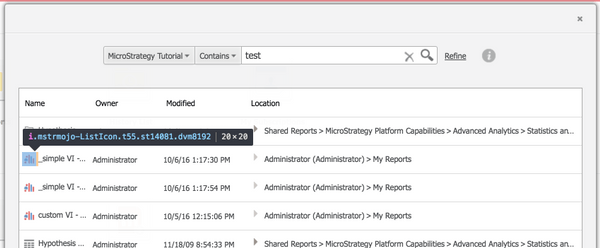

List view:

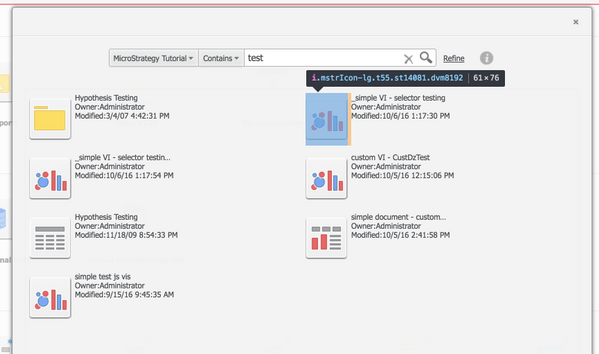

Grid view:

From Strategy Web 10.6 onwards, a custom transform can be used to programmatically change the CSS class used for the icon of individual search results. Custom CSS can then be used to define custom pictures for specific search results (e.g. by object type or object ID). This example demonstrates this customization using the object type.

ACTION:

• Launch the Strategy Web Customization Editor
• Create a new plugin, give a meaningful name.

  Create the CSS that will apply custom images depending on the custom CSS class name:
• Navigate to Strategy Web Configuration-> Global CSS-> Customizations
• Right click on css and choose New Selector.
• Use ".mstrmojo-ListIcon.folder" for the new selector name.
• Right click on the newly added selector and choose New Property.
• Use the property "background-image" with a value similar to "url("../style/images/folderSM.png");" to override the image for this specific selector.
• Repeat steps 4-7 for any additional custom images for custom CSS selectors, matching the icons for search results.

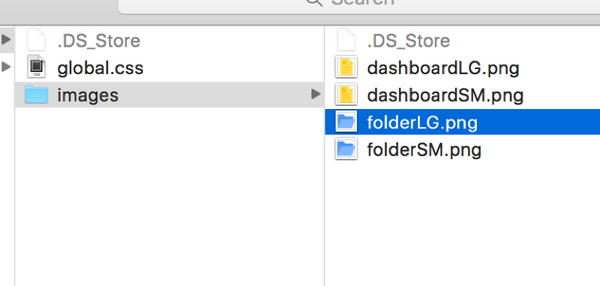

• Add these images to the plugin's style/images folder, as shown below:


• Create a custom transform to override and return a CSS class when individual search results are rendered, depending on a condition:

• In the Web Customization Editor navigate through Strategy Web Configuration -> Styles.
• Right-click on the MojoFolderStyle and select new transform.
• When creating the new transform, ensure the superclass is set to com.Strategy.web.app.transforms.MojoFolderTransform.
• Within the custom transform, override the method addCustomCSSClass, as shown below:



  package com.custom.icon;
  import com.Strategy.web.app.transforms.MojoFolderTransform;
  import com.Strategy.web.objects.WebObjectInfo;
  public class US57366 extends MojoFolderTransform{
  	@Override
  	public String addCustomCSSClass(WebObjectInfo objInfo) {
  		//apply your rules here:
  		if(objInfo.getType()==3)
  			return "report";
  		else if(objInfo.getType()==8)
  			return "folder";
  		else
  		return super.addCustomCSSClass(objInfo);
  	}
  }



• Repeat step 10 to find the style named MojoFolderStyle.
• Double-click the style to open it, and click "Change" on the transform box.
• Find the custom transform created in steps 11-13 and save the style with the new transform.


After restarting Strategy Web, this custom transform will now be called to add "report" or "folder" to the class property from individual search results which can be used to override the icons for specific results.

NOTES:
This customization was made possible through an enhancement added to Strategy 10.6.0 and is therefore not possible in previous versions [2016-Dec-09].
