KB320116: Customizing MicroStrategy Web 10.5 to Display Attributes in Folders Using the Web SDK

SYMTOM:
By default, attributes are not displayed when browsing through folders within the Strategy Web interface, even if a shortcut to the attributes folder within the Schema Objects folder is made through Strategy Developer.

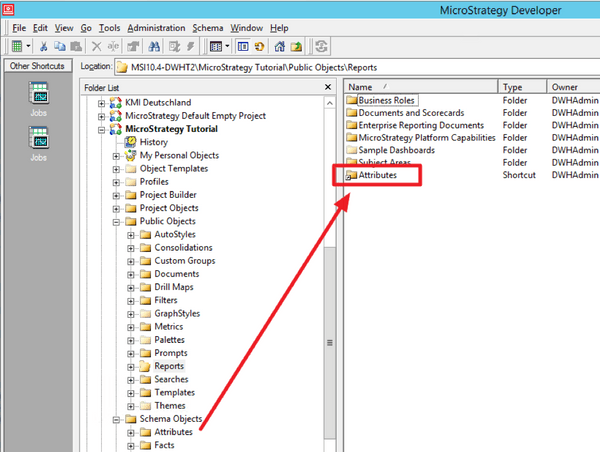

In the below screenshot, a shortcut is created in Strategy Developer:

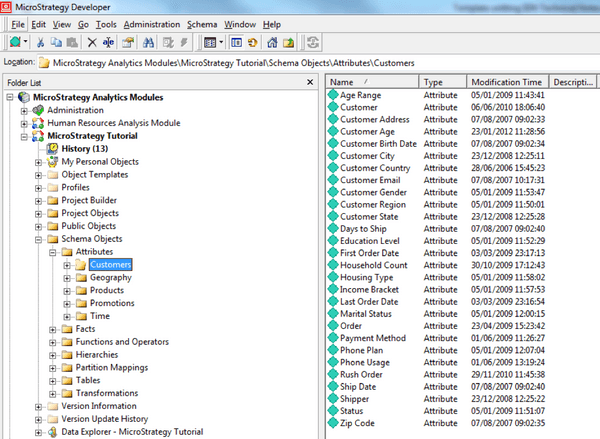

Browsing through this shortcut in Strategy Developer, into a subfolder containing attributes, displays the attributes in the folder:

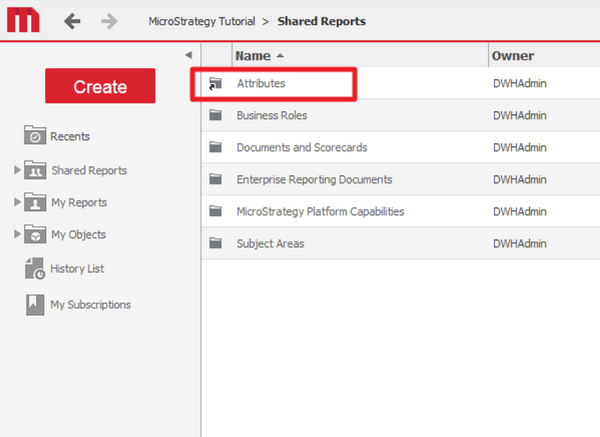

This shortcut can be seen from the Strategy Web interface, if placed in a folder that Strategy Web has access to:

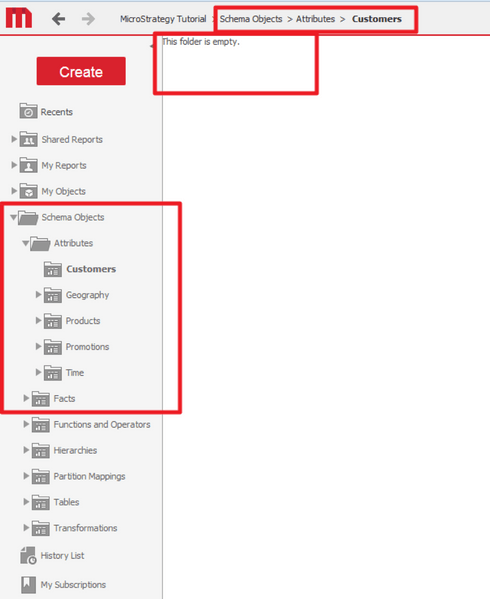

However, browsing into a subfolder containing attributes doesn't display the attributes within by default:


CAUSE:
This is normal platform behavior and is working by design - attributes are not shown in Strategy Web by default, when folder browsing.

ACTION:
Strategy Web can be customized to display attributes and other objects from the folder browsing interface, using the Strategy Web SDK and the Web Customization Editor.
The following steps demonstrate how to change this behaviour:

• Launch the Strategy Web Customization Editor.
• Create a new plugin and give it a meaningful name.
• Navigate to Strategy Web Configuration->Pages->my(My Reports).
• Double-click on my(My Reports) to open the page in the editor.
• Select the "Add-on Properties" tab from the bottom, which shows all add-ons tied to this page.

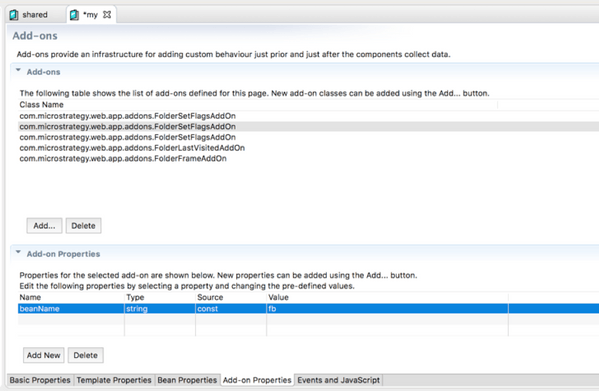

• Click through each "FolderSetFlagsAddOn" element until the "Add-on Properties" shows "beanName" with the value "fb":


• In the "Add-on Properties" section click "Add New" to add the "typeRestrictions" property to this add-on.
• This property takes comma separated int values, based on the values from EnumDSSXMLObjectTypes.

• See this developer zone reference for a full list of options: https://www2.microstrategy.com/producthelp/Current/WebAPIReference/com/microstrategy/webapi/EnumDSSXMLObjectTypes.html
• All object types to be shown need to be included here, including default object types (documents, reports, etc), else they will no longer be shown.

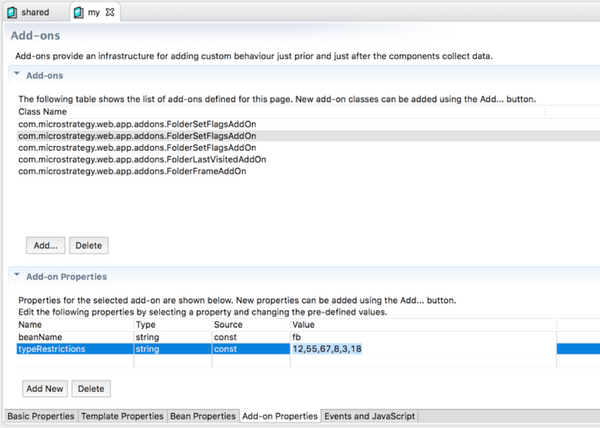

• To show the object types “attribute,document,ext shortcut,folder,report,shortcut” use the comma separated values “12,55,67,8,3,18”, obtained using the reference above:


• Save all changes, and repeat the steps for the “shared(Shared Reports)” page.
• Save all changes, and restart Strategy Web to complete the customization.

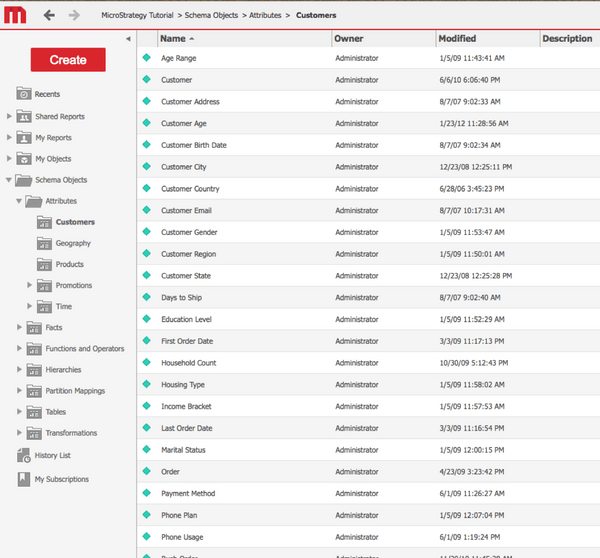

After following these steps correctly, attributes will now display in Strategy Web within any folder that contains attributes:

ADDITIONAL INFORMATION:
The Strategy SDK allows you to customize several Strategy products and extend and integrate the Strategy business intelligence functionality into other applications. However, before changing the way Strategy products look or behave, it is helpful to understand how the application is built. For more information regarding the Strategy products or the process of customizing Strategy products, please refer to Strategy Developer Zone (https://developer.Strategy.com).
To access the Strategy Developer Zone, you must have access to the Strategy Knowledge Base, you must have purchased the Strategy SDK, and you must be current on your Strategy maintenance agreement. If you are a US-based business and believe that you satisfy all three of these conditions but you do not have access to the Strategy Developer Zone, please contact Strategy Technical Support at support@Strategy.com or at (703) 848-8700. If you are an international business, please contact Strategy Technical Support at the appropriate email address or phone number found at https://www.Strategy.com/us/services/support/contact.
