KB34674: How to Programmatically Create a Search that Returns Objects Contained in Multiple Documents in the MicroStrategy Server SDK 9.3.1


Community Admin

• Strategy


Using Strategy, it is possible to define a search that returns a list of objects that are contained in multiple documents. To create this type of search using Strategy Desktop 9.3.1, perform the following steps:

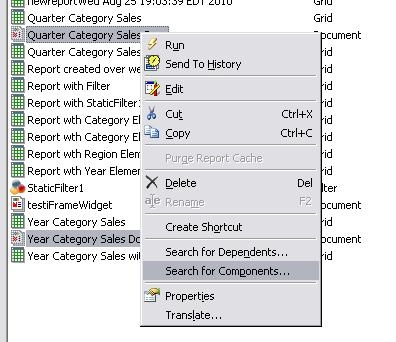

1. Select multiple documents in Desktop, by holding down the CTRL key and clicking multiple Documents. Right-click and click the option 'Search for Components':

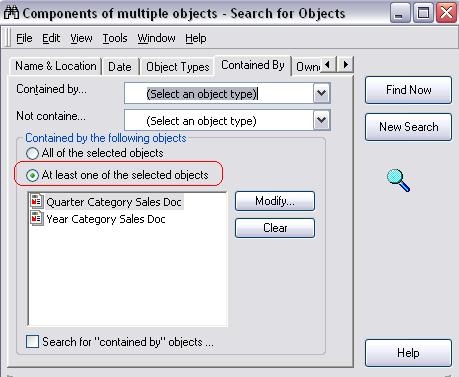

2. If all the expected elements did not return, switch to the 'Contained By' tab and select the option 'At least one of the selected objects' as shown below:

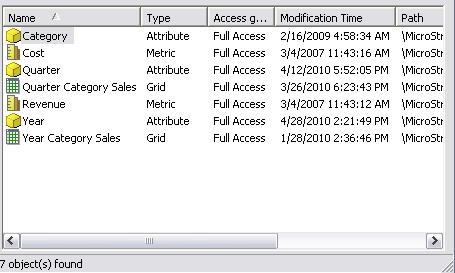

3. Click Find now and the expected objects are returned:






It is also possible to do this programmatically using the Strategy Intelligence Server SDK 9.3.1.  To achieve the same result using the SDK, use the following code snippet:

    Dim mySearch As IDSSSearch
    Dim myResult As IDSSFolder
    Dim oInfo As IDSSObjectInfo

    Dim doc1 As IDSSObjectInfo5
    Dim doc2 As IDSSObjectInfo5

    Set MySource = MySession.Component(DssRoleObjectSource)

    Set doc1 = MySource.FindObject("FD14642A46779B8DB6229AA225F339E9", DssTypeDocumentDefinition)

    Set doc2 = MySource.FindObject("60E8E33C499F4D6DB59EA3AEE6F4122C", DssTypeDocumentDefinition)

    Dim ofolder As IDSSFolder

    Set mySearch = MySource.NewObject(DssTypeSearch)

    mySearch.UsedBy.Add doc1

    mySearch.UsedBy.Add doc2

    ' the following flag must be set. this flag represents the option 'At least one of the selected objects' in the GUI interface.
    mySearch.Flags = DssSearchUsedByOneOf


    Set myResult = mySearch.Execute


    For Each oInfo In myResult

        debug.print "name: " & oInfo.Name

    Next

End Sub



 CUSTOMIZATION WARNING:
This customization is provided as a convenience to Strategy users and is only directly applicable to the version stated. While this code may apply to other releases directly, Strategy Technical Support makes no guarantees that the code provided will apply to any future or previous builds. In the event of a code change in future builds, Strategy Technical Support makes no guarantee that an updated version of this particular customization will be provided. In the event of a code change in future builds, Strategy may not be able to provide additional code on this matter even though this customization is provided at this time for this specific build. For enhancements to this customization or to incorporate similar functionality into other versions, contact your Account Executive to inquire about Strategy Consulting assistance.
