KB35287: The ESRI map isn't rendered when the esriConfig.xml file contains an XML comment in MicroStrategy Web

SYMPTOM:
In Strategy Web 9.4.x-10.x, the ESRI map isn’t rendered when the esriConfig.xml file contains an XML comment.

STEPS TO REPRODUCE:
Follow the steps below to reproduce this issue with Strategy Tutorial Project:

• Refer to the following technical note to deploy the ESRI plugin:
  KB45064: How to activate cloud-based ESRI maps for MicroStrategy Web products

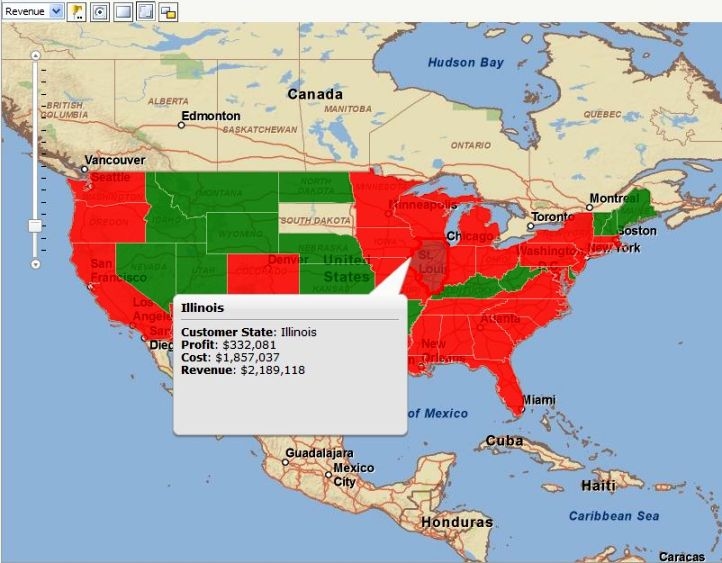

• Run the dashboard with ESRI map, it is rendered correctly, as shown below:


• Replace the following lines in esriConfig.xml file



  <bm key="default">http://server.arcgisonline.com/ArcGIS/rest/services/ESRI_StreetMap_World_2D/MapServer</bm>



  by:






  <bm key="default">http://server.arcgisonline.com/ArcGIS/rest/services/ESRI_StreetMap_World_2D/MapServer</bm>

  <!-- Any comments here -->






• Restart the web server to apply the changes.

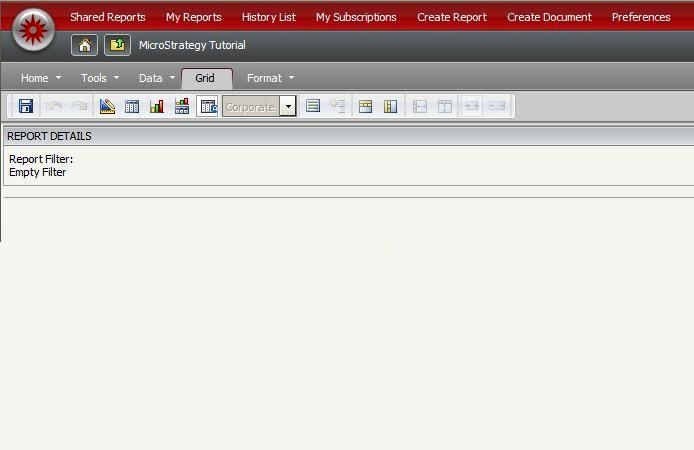

• Run the report again in Strategy Web, note that the ESRI map isn’t rendered anymore, as shown below:



CAUSE:
This is known issue in Strategy Web 9.4.x.-10.x

ACTION:
Strategy will continue to investigate and post updates as soon as they are available.

WORKAROUND:
Remove the XML comments from esriConfig.xml file.

Strategy Only Begin
This issue has been logged as Scopus ID 492955 and TQMS ID 450550
Strategy Only End
35287
