KB36122: How to Programmatically Modify the Prompt Definition to Change the Web Display Properties using the MicroStrategy Java Web SDK 9.3.1

Using the Strategy Java Web SDK 9.3.1, it is possible to programmatically modify a prompt definition to change the Web display properties.  This is beneficial to users who are upgrading from a previous version and want to change some of the display settings that didn't exist previously.

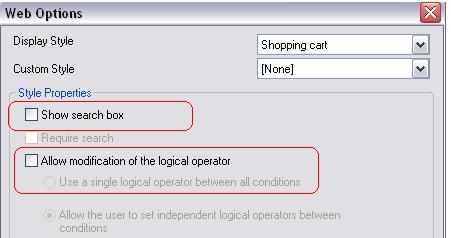

In this example, the following display properties were not selected in a prompt that was created in a previous version:

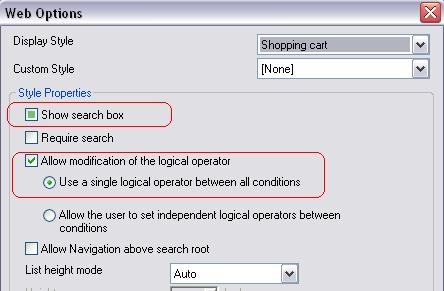

After modifying the prompt programmatically, these options will now be selected as shown below:



Use the followng code to programmatically change these properties:


package customclasses.misc;
import com.Strategy.web.objects.WebExpressionPrompt;
import com.Strategy.web.objects.WebIServerSession;
import com.Strategy.web.objects.WebObjectInfo;
import com.Strategy.web.objects.WebObjectSource;
import com.Strategy.web.objects.WebObjectsException;
import com.Strategy.web.objects.WebObjectsFactory;
import com.Strategy.web.objects.WebProperties;
import com.Strategy.web.objects.WebProperty;
import com.Strategy.webapi.EnumDSSXMLAuthModes;
import com.Strategy.webapi.EnumDSSXMLObjectFlags;
public class ModifyPromptDef {
 /
 public static void main(String[] args) {
  // TODO Auto-generated method stub

  WebObjectsFactory objectFactory = WebObjectsFactory.getInstance();
        WebIServerSession serverSession = objectFactory.getIServerSession();
        serverSession.setServerPort(0);
        serverSession.setAuthMode(EnumDSSXMLAuthModes.DssXmlAuthStandard);
        serverSession.setProjectName("Strategy Tutorial");
        serverSession.setLogin("administrator");
        serverSession.setPassword("");
        serverSession.setServerName("Intelligence Server");

        try {

         //Create a session on the I-server
   String SessionID = serverSession.getSessionID();
   System.out.println("Welcome " + serverSession.getLogin());
   System.out.println("SessionID: " + SessionID);

   WebObjectSource wos=objectFactory.getObjectSource();
   wos.setFlags(wos.getFlags()| EnumDSSXMLObjectFlags.DssXmlObjectProperties);

   String promptID = "9E8B741B49CF0FC7CA4A2193D351AD77";


   WebObjectInfo pinfo = wos.getObject(promptID, 10, true);

   out(pinfo.getName());

   out(pinfo.getClass().toString());

   WebExpressionPrompt wep = (WebExpressionPrompt)pinfo;

   out("subtype: "+wep.getSubType());

   WebProperties wprops = wep.getDisplayProperties();
   out(wprops.getXML());

   /*change properties:
   DisplaySearchBox (0 > -1)
   AllowRootOperatorChange (0 > -1)*/

   WebProperty wp1 = wprops.getByName("DisplaySearchBox");

   WebProperty wp2 = wprops.getByName("AllowRootOperatorChange");

   out(wp1.getName()+" = "+ wp1.getValue());
   out(wp2.getName()+" = "+ wp2.getValue());
   wp1.setUseDefault(true);
   wp1.setValue("-1");

   wp2.setValue("-1");

   wp1.save();
   wp2.save();

   wos.save(wep);

   out("end");


        }catch (WebObjectsException ex) {
   System.out.println(ex.getMessage());
   ex.printStackTrace();
  }
 }

 public static void out(String s){
  System.out.println(s);
 }
}
