KB441623: Slow performance while querying tables that have columns set to varchar(max) or char(max) data types.

SYMPTOM:

In Strategy 10.x and newer versions, slow performance has been observed while querying tables that have columns set to varchar(max) or char(max) data types using the Strategy ODBC Driver for Amazon Redshift Wire Protocol.

CAUSE:

Strategy Intelligence Server uses an ODBC Call (SQLDescribeCol) to determine the proper resources to allocate for the query results coming back from Amazon Redshift. In cases where the column datatype is varchar(max) the call to SQLDescribeCol will return a value of 65535 bytes.
If the SQL is bringing back values with varchar(max) dataype, the Strategy Intelligence Server will have to allocate a lot of memory resources to fetch back the data causing degradation in query performance or out of memory issues. Similar issue is observed where there is a large precision for varchar or char columns (varchar(20000) or char(max) for example).


WORKAROUND:


For DSN Connection

Windows

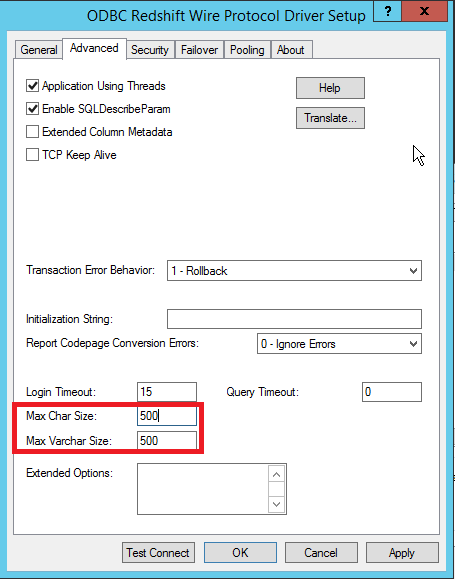

• Navigate to you Amazon Redshift DSN from the ODBC Administrator. In the Advanced tab set the values for Max Char Size and Max Varchar Size.
• For the example below the default value has been set to be 500.  Note:  Consult DBA and set the max size values based on his/her recommendations after analyzing the data in the underlying database. Note: If this value is set too low it can lead to data truncation issues

Linux


• Create a DSN to Redshift using connectivity wizard.

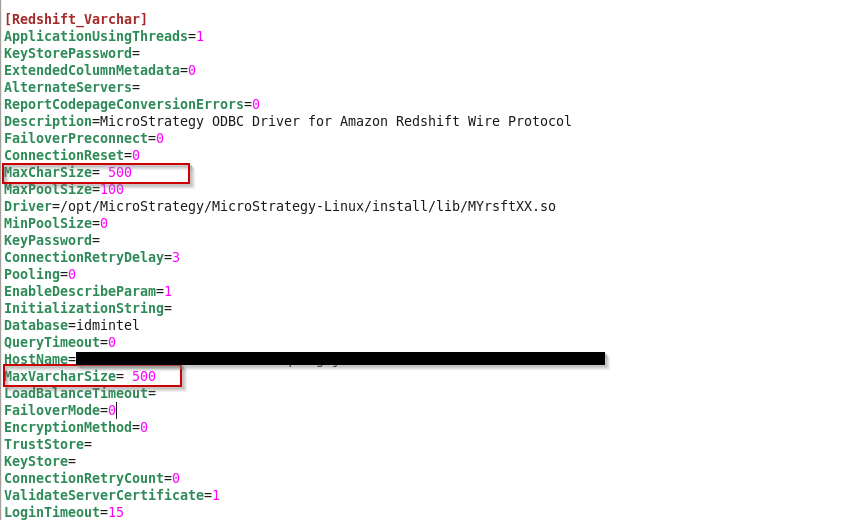

• Edit the DSN parameters in odbc.ini file set the values for Max Char Size and Max Varchar Size based on DBA's suggestion as shown below:


For DSN-Less Connection


1. Navigate to MSTR Web → Access External Data → Amazon Redshift → Select DSNLess Connection
2. Enter the Server name, Port and Database name and check the Edit Connection String option and add MaxCharSize=500;MaxVarcharSize=500; Note: Consult your DBA and set the max size values based on his/her recommendations after analyzing the data in the underlying database.



Article Reference Number:   KB441623
