KB45504: What is the "Delivery Trace" and what is its purpose for MicroStrategy Distribution Services 9.3.1 and newer?

• Strategy

This technote explains the use of the Delivery Trace in MicroStrategy.

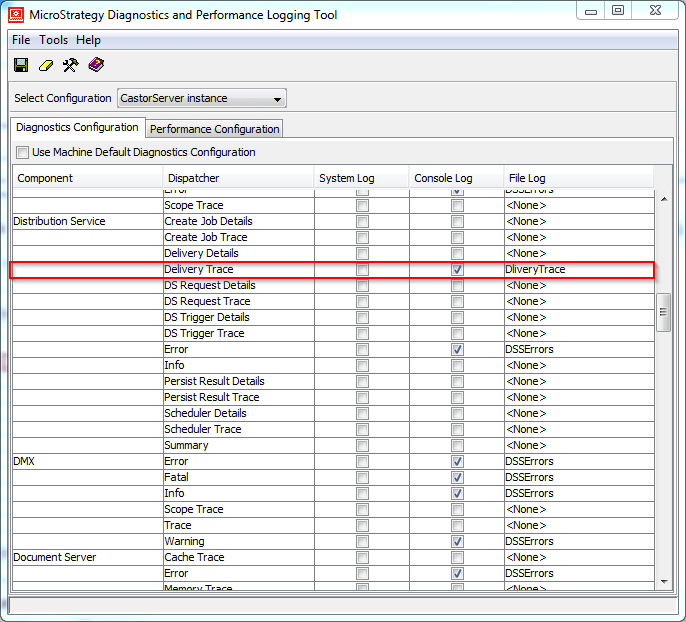

Starting in Strategy 9.3.1, additional logging is available for Distribution Services. The "Delivery Trace" trace is useful when trying to determine details regarding a specific subscription execution. It can be found in the Strategy Diagnostics and Performance Logging tool as shown below:

Note: This log is not enabled by default. An existing or new "File Log" destination must be selected for this logging to be used.

When a subscription that runs on a schedule is executed or the "Send Now" feature is utilized, a subsequent job is created for Distribution Services. This trace will display details about subscriptions that were triggered and the subscription recipients. The following entries are seen in the trace when a subscription is triggered:


2013-12-13 18:38:58.605-05:00 Enter MSIDeliveryEngine::Delivery(), Job <ID = 32>

2013-12-13 18:38:58.611-05:00 Enter MSIDeliveryEngine::hCheckMobileReportFailure().<Subscription '' (ID = D239E3A342DBF5B6F56059AE3357FD9A), Contact 'Administrator' (ID = 54F3D26011D2896560009A8E67019608) >

2013-12-13 18:38:58.617-05:00 Enter MSIDeliveryEngine::PreTransmissionNotification(). <Subscription '' (ID = D239E3A342DBF5B6F56059AE3357FD9A), Contact 'Administrator' (ID = 54F3D26011D2896560009A8E67019608) >

2013-12-13 18:38:58.619-05:00 Return HR = 0x0 from MSIDeliveryEngine::PreTransmissionNotification().<Subscription '' (ID = D239E3A342DBF5B6F56059AE3357FD9A), Contact 'Administrator' (ID = 54F3D26011D2896560009A8E67019608) >

2013-12-13 18:38:58.621-05:00 Enter MSIDeliveryEngine::DeliveryTransmission().<Subscription '' (ID = D239E3A342DBF5B6F56059AE3357FD9A), Contact 'Administrator' (ID = 54F3D26011D2896560009A8E67019608) >

2013-12-13 18:38:58.624-05:00 Enter MSIDeliveryEngine::hDelivery() wtih iNotification = false. Job <ID = 32>

2013-12-13 18:38:58.655-05:00 Enter MSIDeliveryEngine::hGetDeliveryAddresses() wtih iNotification = false.<Subscription '' (ID = D239E3A342DBF5B6F56059AE3357FD9A), Contact 'Administrator' (ID = 54F3D26011D2896560009A8E67019608) >

2013-12-13 18:38:58.658-05:00 Return S_OK from MSIDeliveryEngine::hGetDeliveryAddresses().

2013-12-13 18:38:58.857-05:00 Enter GetHTMLDataAndImages() wtih includeData = true iProjID = 0 iDeliveryType = 1 iHTMLDoc = false iReplaceString = 88A0DDFF4821C7795BECFE920D9E2080_

2013-12-13 18:38:58.858-05:00 Return S_OK from GetHTMLDataAndImages().

2013-12-13 18:38:59.245-05:00 Return S_OK from MSIDeliveryEngine::hDelivery(), iNotification = false Job <ID = 32>.<Subscription '' (ID = D239E3A342DBF5B6F56059AE3357FD9A), Contact 'Administrator' (ID = 54F3D26011D2896560009A8E67019608) >

2013-12-13 18:38:59.246-05:00 Return S_OK from MSIDeliveryEngine::DeliveryTransmission().<Subscription '' (ID = D239E3A342DBF5B6F56059AE3357FD9A), Contact 'Administrator' (ID = 54F3D26011D2896560009A8E67019608) >

2013-12-13 18:38:59.247-05:00 Enter MSIDeliveryEngine::PostTransmissionNotification().<Subscription '' (ID = D239E3A342DBF5B6F56059AE3357FD9A), Contact 'Administrator' (ID = 54F3D26011D2896560009A8E67019608) >

2013-12-13 18:38:59.248-05:00 Return HR = 0x1 from MSIDeliveryEngine::PostTransmissionNotification().<Subscription '' (ID = D239E3A342DBF5B6F56059AE3357FD9A), Contact 'Administrator' (ID = 54F3D26011D2896560009A8E67019608) >

2013-12-13 18:38:59.249-05:00 Return S_OK from MSIDeliveryEngine::Delivery().<Subscription '' (ID = D239E3A342DBF5B6F56059AE3357FD9A), Contact 'Administrator' (ID = 54F3D26011D2896560009A8E67019608) >

This trace provides further information for a subscription's execution, tracking details of the delivery process, and each line shows the delivery status. The first line "Enter MSIDeliveryEngine::Delivery(), Job <ID = 32>" indicates that the delivery process has started. The last line shows that the subscription was delivered "Return S_OK from MSIDeliveryEngine::Delivery().<Subscription...."
