KB484799: Fix the document execution error when there is complex Derived Attribute defined on another Derived Attribute

Starting with the release of Strategy ONE (March 2024), dossiers are also known as dashboards.
Description
When there is a complex Derived Attribute defined on multiple Attributes including Derived Attributes, Dossier execution returns error
Steps to Reproduce
This procedure is using the Strategy Tutorial warehouse that is shipped with Strategy.

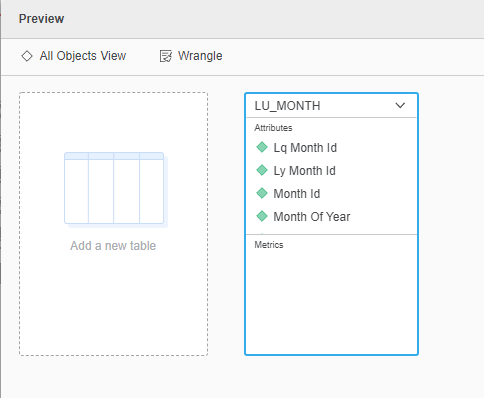

1. Login to Strategy Web, go to Add External Data -> Databases -> Pick Tables and pick the following tables and columns

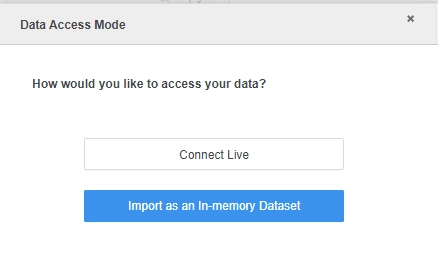

1. Click Finish to Import as an In-memory Dataset and save as MTDI01

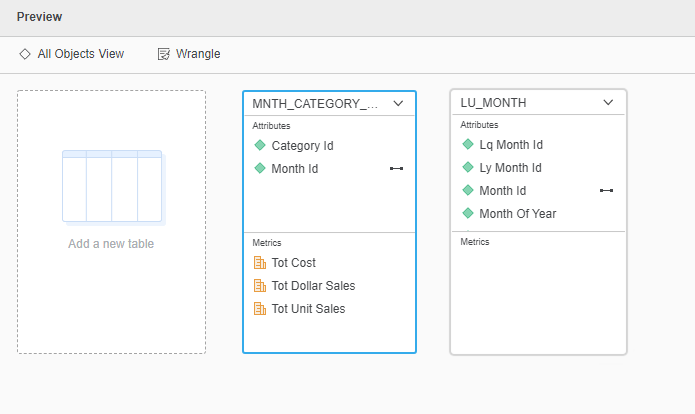

1. Go to Add External Data -> Databases -> Pick Tables and pick the following table and columns

1. Click Finish to Import as an In-memory Dataset and save as MTDI02

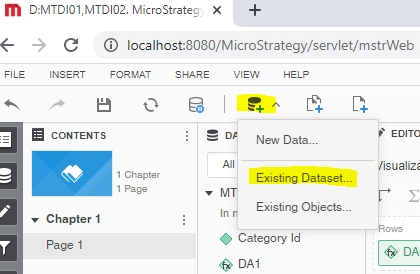

2. Create dossier based on MTDI01 and add MTDI02 as another dataset

1. Create Derived Attributes in the first dataset as below:

DA1: ([Prev Month Id]@ID+1)
DA2: [Month Of Year]@ID
DA3: (DA1@ID+[Month Of Year]@ID)
DA5: ([DA3]@ID+DA2@ID)
DA6: ([DA5]@ID+[Month Of Year]@ID)


1. Add into template: DA6
2. The dossier execution failed with error:  “Error in generating big relation for DA5, DA2, Prev Month Id, DA1, Month Of Year, DA3, DA6.[Strategy Error Instance:13A2676CA25711E98256ACDE48001122]”

1. Check MCE Trace, we can see that when generating big relation RELATION15-<DA5:DA3,DA2, DA2, DA3:DA1, DA1, Prev Month Id, Month Of Year>,  it joins on parent Attribute DA1

 select    [DA1]@[ID],
    [Prev Month Id]@[PREV_MONTH_ID]
from    RELATION1-<DA1, Prev Month Id>
to    Ex14_tempcube2
2020-08-19 16:08:27.783-04:00 [HOST:IP-0AF417BF][SERVER:T2149_IP-0AF417BF_200817094317510_6184_0001_teyema][PID:8140][THR:2360][MCE][Trace][UID:54F3D26011D2896560009A8E67019608][SID:6958F1A7205F7B7F3EF240EFD42FAAE8][OID:C92ABF2D4E4FBF7383EAFBB6D5D5CFAF]
select    [DA5]@[ID],
    [DA2]@[ID],
    [DA3]@[ID],
    [DA1]@[ID],
    [Prev Month Id]@[PREV_MONTH_ID],
    [Month Of Year]@[MONTH_OF_YEAR]
from    Full Outer Join(
                    Ex14_tempcube2,
                    Full Outer Join(
                                    Ex14_tempcube1,
                                    Ex14_tempcube0
                                   ) on DA3
                   ) on DA1
to    RELATION15-<DA5, DA2, DA3, DA1, Prev Month Id, Month Of Year>
Cause:
This is a known issue in Strategy.
Solution:
This issue has been addressed in Strategy 2021.
To pick up the fix, upgrade to Strategy 2021 or above and enable project level setting "Data Engine Version" to 2020 or above. For more details on enabling the setting, refer to Change Data Engine Version
With the fix, the dossier can execute successfully. Checking MCE Trace, it joins on child Attribute [Month Of Year] when generating big relation RELATION14-<DA5:DA3,DA2, DA2, DA3:DA1, DA1, Prev Month Id, Month Of Year>
select    [DA1]@[ID],
    [Prev Month Id]@[PREV_MONTH_ID],
    [Month Of Year]@[MONTH_OF_YEAR],
    [DA3]@[ID]
from    RELATION6-<Month Of Year, Prev Month Id, DA1, DA3 >
to    Ex14_tempcube1
2020-08-19 15:57:26.102-04:00 [HOST:IP-0AF4178E][SERVER:T2149_IP-0AF4178E_200811160701440_4576_0001_ficupu][PID:7264][THR:10720][MCE][Trace][UID:54F3D26011D2896560009A8E67019608][SID:B7CA0ED8B7C4BC27074A601668DDDF5A][OID:C92ABF2D4E4FBF7383EAFBB6D5D5CFAF]
select    [DA5]@[ID],
    [DA2]@[ID],
    [DA3]@[ID],
    [DA1]@[ID],
    [Prev Month Id]@[PREV_MONTH_ID],
    [Month Of Year]@[MONTH_OF_YEAR]
from    Full Outer Join(
                    Ex14_tempcube0,
                    Ex14_tempcube1
                   ) on DA3, Month Of Year
to    RELATION14-<DA5, DA2, DA3, DA1, Prev Month Id, Month Of Year>
Strategy internal reference number for this technical note is DE163102
