KB489555: Add Functionality with a Custom Scene Delegate in Strategy Mobile iOS

Product Owner, Principal • MicroStrategy

Starting with iOS 13, Apple shifted to a scene-based application lifecycle using UIScene and UISceneDelegate. This allows independent management of multiple UI instances, especially for iPad multi-window support. The Strategy iOS Library SDK now supports UISceneDelegate to align with this modern architecture. Its template Xcode project ships with a default scene delegate class (MSIDefaultSceneDelegate), but developers can customize behavior by extending this class and overriding UIWindowSceneDelegate methods to tailor app launch and state transitions.

Starting with iOS 13, Apple introduced the

UIScene

and

UISceneDelegate

APIs as part of a significant update to the application lifecycle model. Previously, all state transitions were managed exclusively through

UIApplicationDelegate

at the app level. With multi-window support on iPad and enhanced lifecycle management on iPhone, Apple moved to a scene-based architecture, where each scene represents a distinct instance of the app's UI and is managed independently.

To align with these modern app architectures, the Strategy SDK now supports

UISceneDelegate

The template Xcode project included in the Strategy iOS Library is preconfigured with an internal scene delegate class named

MSIDefaultSceneDelegate

. However, developers can customize behavior by providing their own delegate. This is typically done by extending the internal scene delegate class and overriding relevant methods defined in the

UIWindowSceneDelegate

protocol to add functionality during app launch and state transitions.

Create a Custom Scene Delegate Class That Extends MSIDefaultSceneDelegate

Set up the environment so that you can use the StrategyMobile project as the base for your customizations.
Open the template project and use Xcode to open the
```
StrategyLibrary.xcodepro
```
j file.

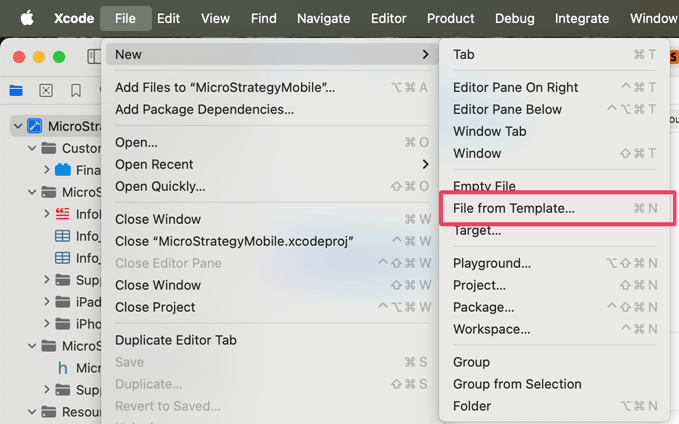

Create a new Swift file. From the File menu, point to New, then File from Template, and choose the Swift file type. Provide a meaningful file name, such as
```
CustomSceneDelegate.
```

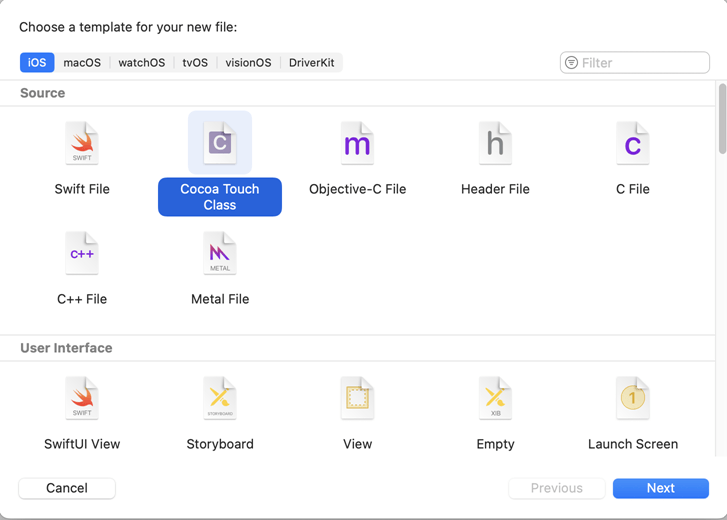

Select Cocoa Touch Class. Click Next.

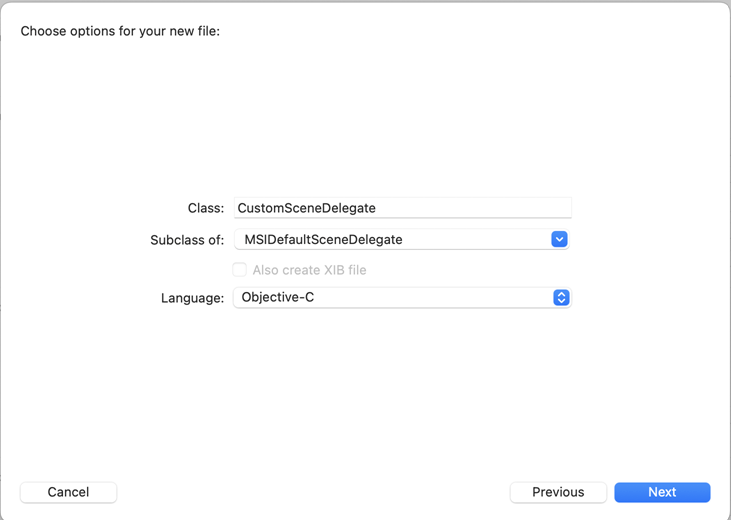

Type a name for your app delegate class (for example,
```
CustomSceneDelegate
```
). Select MSIDefaultSceneDelegate from the Subclass Of drop-down-list. Set the Language to Objective-C. Click Next.

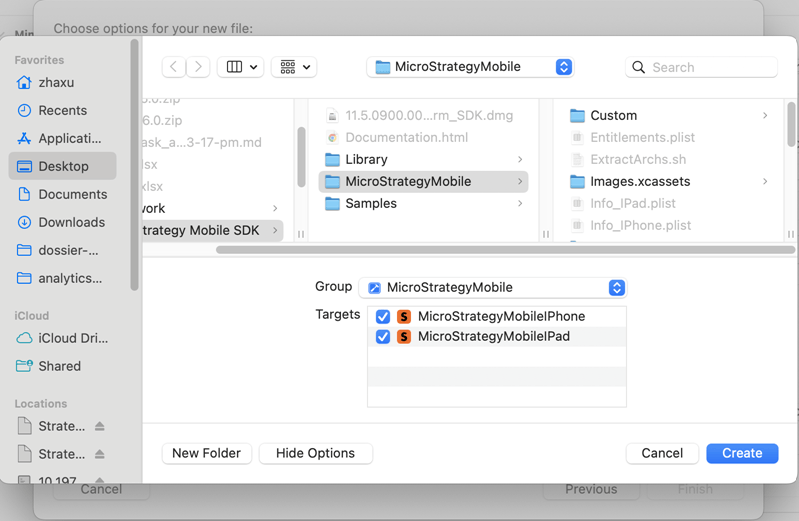

In the pop-up window, ensure that Group is set to
```
StrategyMobile
```
and that both
```
StrategyMobileIPhone
```
and
```
StrategyMobileIPad
```
are selected as Targets. Click Create.

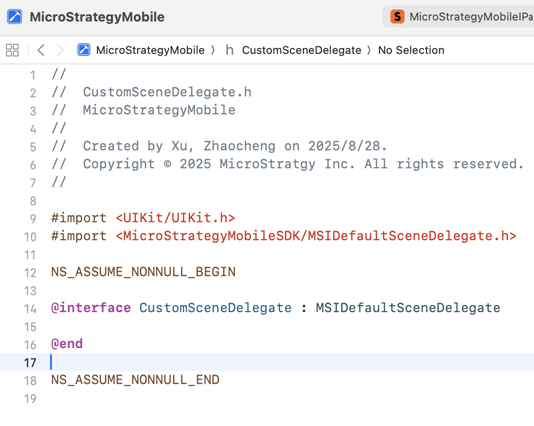

The template code for your custom scene delegate class displays. Add the following line of code:
```
#import <StrategyMobileSDK/MSIDefaultSceneDelegate.h>
```

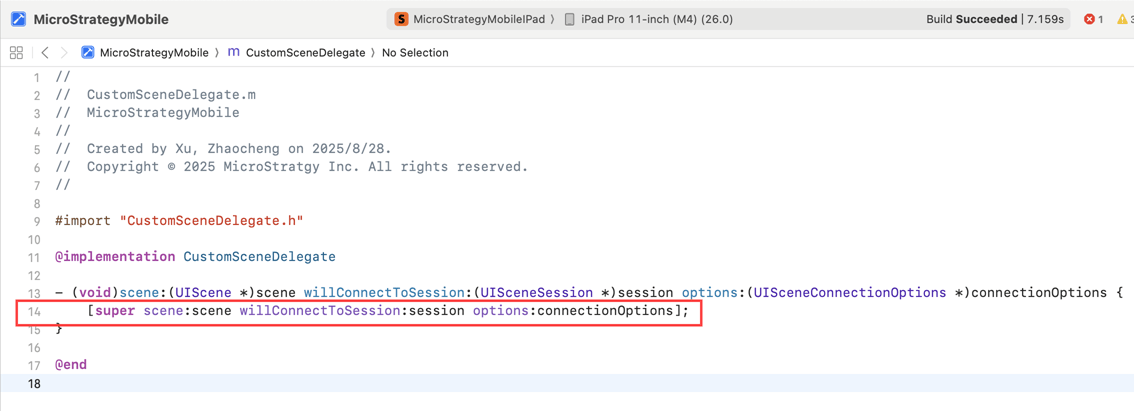

Customize your scene delegate callbacks as required, ensuring that you call the super implementation. This is necessary to retain critical functionality provided by the SDK, as illustrated in line 14 of the image below:

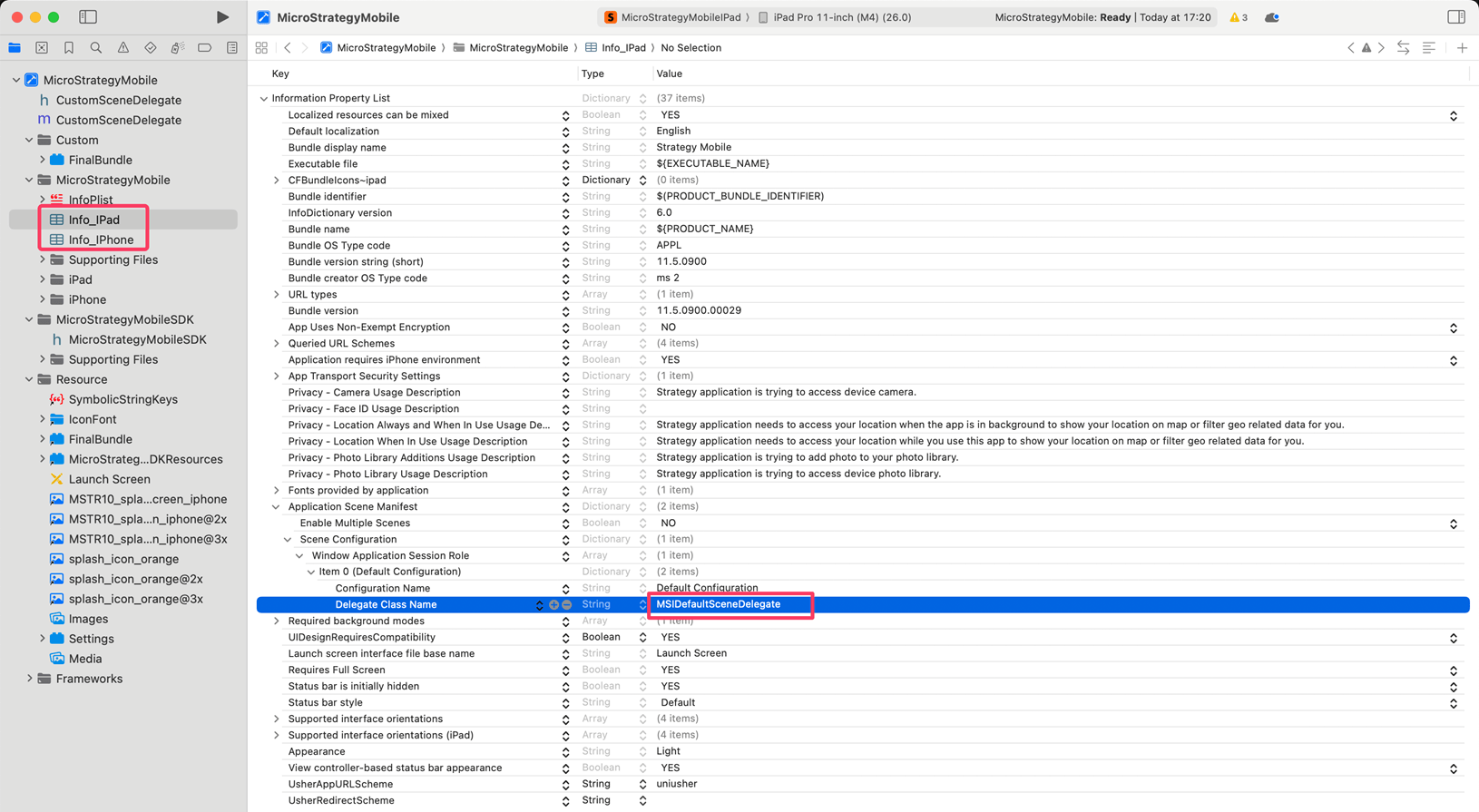

Update both

 Info_IPad.plist

and

 Info_IPhone.plist

by replacing

MSIDefaultSceneDelegate

with your scene delegate class name (for example,

CustomSceneDelegate

Build and run your application.
