KB9265: How to change the SQL representation of the value of a date prompt when a timestamp is used in MicroStrategy Developer 9.4.x-10.x

INTRODUCTION
In some circumstances, it is desired that date filters or other representations of dates in Structured Query Language (SQL) use a timestamp rather than a date format. Customizing the SQL in this case requires the user to expose a Very Large Database (VLDB) property that is normally hidden, called "TimeStamp Pattern".

The following example uses SQL Server for the warehouse but the procedure described here will apply to other database configuration.

Using a SQL Server warehouse, a report filter using a simple prompt on date yields the following SQL:

select a11.Date_ID Date_ID,
     a11.Date_Desc Date_Desc
from LU_Time a11
where a11.Date_ID = CONVERT(datetime, '2003-10-15 00:00:00', 120)
To change the details of the CONVERT function call, the timestamp pattern must be changed. To achieve this, perform the following steps:


1. Open the file C:\Program Files\Common Files\MicroStrategy\vldb.xml in Notepad. Either launch Notepad first and use the open command, or right-click on the vldb.xml file and choose the "Open with..." command.
2. Search for the phrase "Timestamp Format." This corresponds to a VLDB property that is normally visible. The entire eXtensible Markup Language (XML) definition for timestamp format appears as follows:
      <Setting>
         <Name>TimeStamp Format</Name>
         <MaxValues>1</MaxValues>
         <GroupID>7</GroupID>
         <Type>0</Type>
         <DisplayName>SQL Timestamp Format</DisplayName>
         <DisplayLevel>1</DisplayLevel>
         <ShowSQLPreview>1</ShowSQLPreview>
   <SQLPreview1/>
      </Setting>

3. Immediately beneath the closing tag, insert the following:
    <Setting>
         <Name>TimeStamp Pattern </Name>
         <MaxValues>1</MaxValues>
         <GroupID>7</GroupID>
         <Type>0</Type>
         <DisplayName>SQL Timestamp Pattern </DisplayName>
         <DisplayLevel>1</DisplayLevel>
         <ShowSQLPreview>1</ShowSQLPreview>
   <SQLPreview1/>
      </Setting>

4. Save the changes and close the file.

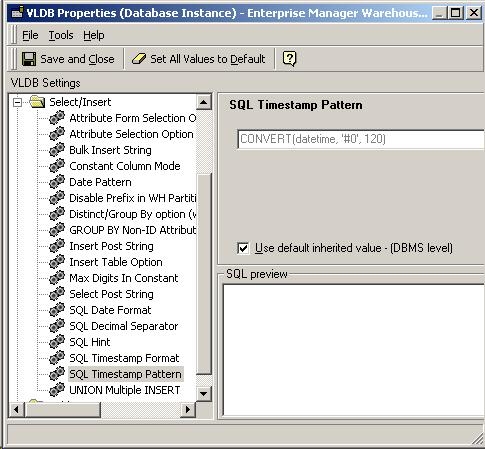

Now, the next time the user accesses VLDB properties at the database instance level, the Select/Insert folder will have an additional item, "SQL Timestamp Pattern", as shown below:



In the case of the example above, changing the timestamp pattern from convert(datetime, '#0', 120) to convert(datetime, '#0') results in the following SQL:

select a11.Date_ID Date_ID,
     a11.Date_Desc Date_Desc
from LU_Time a11
where a11.Date_ID = CONVERT(datetime, '2003-10-15 00:00:00')
WARNING:
Manually editing values in the Strategy XML configuration files incorrectly may cause serious, project-wide problems that may make your project unusable. Since these are user-initiated changes, they are not covered by any Strategy warranty. Users are strongly encouraged to back up any XML files prior to any alteration.
