KB485995: "Your login has been denied by the system." error shows when login MicroStrategy Library using SAML authentication with ADFS as IDP

Senior Cloud Support Engineer III • MicroStrategy

This article describes a typical scenario when SAML assertion is blank due to request not signed, which is required by ADFS Identity provider.

Symptom

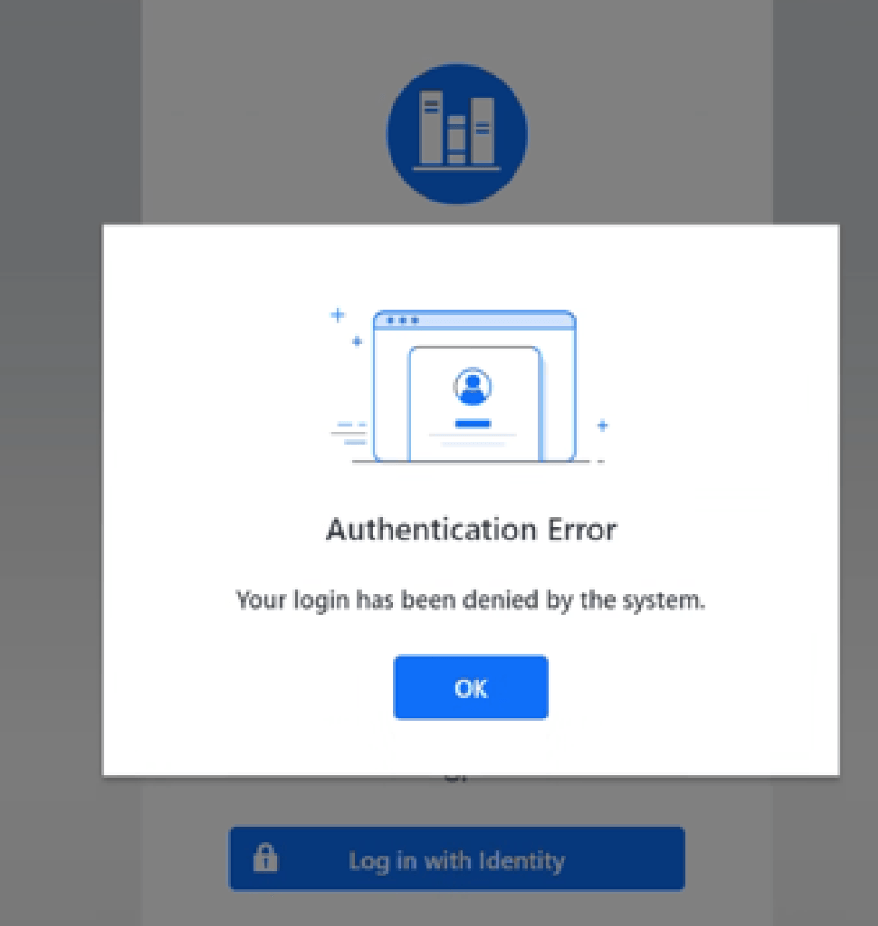

When login library from ADFS using SAML authentication, below error shows:

“Authentication Error: Your login has been denied by the system.”
There is below entry in SSO log:

{"@timestamp":"2023-03-09T13:44:39.385Z","@version":"1","message":"RestError [code=ERR003, iServerErrorCode=0, message=Login failed, httpStatusCode=401, ticketId=5206e602e77e465fa26a295098775611]","logger_name":"com.Strategy.auth.saml.SAMLLoginFailureHandler","thread_name":"https-openssl-nio-8443-exec-7","level":"ERROR","level_value":40000,"stack_trace":"org.springframework.security.saml2.provider.service.authentication.Saml2AuthenticationException: No assertions found in response.

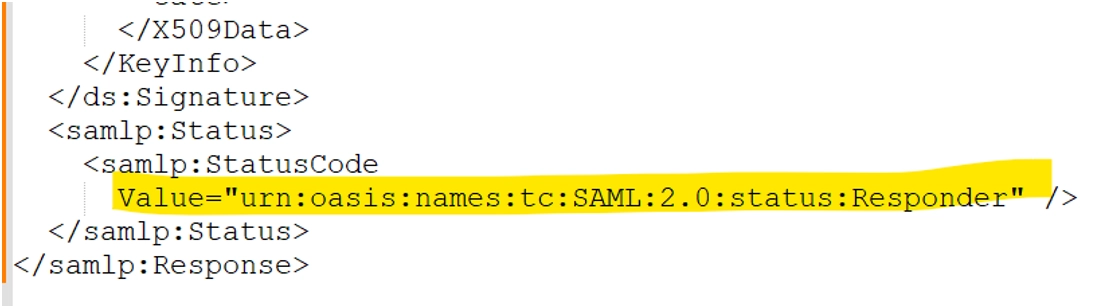

In SAML response, there’s no assertion appended and below value is seen:

urn:oasis:names:tc:SAML:2.0:status:Responder

Cause

This is due to we upgraded org.opensaml from v2.6.7 to v.4.1.0 and replaced the spring-security-saml2-core framework with the newer, more secure, spring-security-saml2-service-provider v5.5.3 since Strategy 2021 Update 4.
While signed assertion is a must-have for v5.5.3, see here:
https://docs.spring.io/spring-security/site/docs/5.3.3.RELEASE/reference/html5/#servlet-saml2-login-feature-set
13.1.3. Saml 2 Login - Current Feature Set
3. Requires the assertion to be signed unless the response is signed.

Action

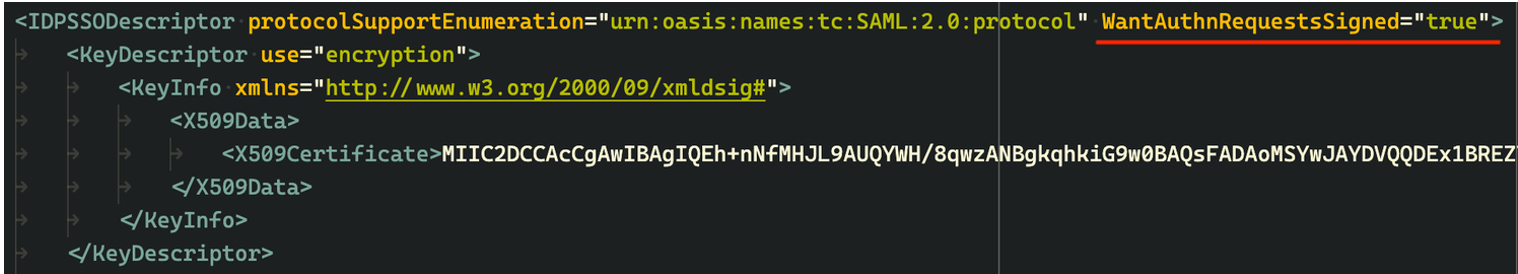

Add

WantAuthnRequestsSigned="true"

in IdPMetadata.xml:

See more here: https://www2.Strategy.com/producthelp/current/SystemAdmin/WebHelp/Lang_1033/Content/saml_sign_auth_requests.htm
