SAP Single Sign On – High Level Workflow

The support for Single Sign On for SAP is based on the new implemented feature to transfer the Kerberos ticket to SAP Logon ticket with the help of SAP Java Server.
In fact Kerberos doesn’t work directly between Strategy Intelligence Server(I-Server) and ABAP Server. Instead SAP Logon ticket is used by I-Server to connect to ABAP Server.
Java Server is required here to work as an agent for the whole authentication. Kerberos works between Developer (Browser, Web Server), I-Server, SAP Java Server. And there is trust relationship configured between SAP ABAP and Java Server. So Java Server can generate SAP Logon ticket base on SAP Kerberos ticket for I-Server to connect to ABAP Server.

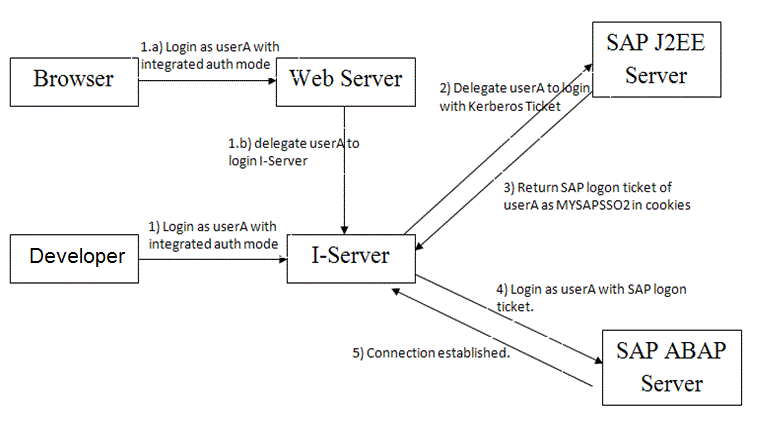

The whole transfer procedure could be described as below:

The whole workflow includes the following steps.

1. UserA logs in to Developer or Web with integrated authentication, create database instance for SAP ABAP Server and configures necessary info including the portal URL of SAP J2EE Server.
2. When UserA runs report or other tasks against the SAP ABAP Server, I-Server would retrieve credentials to delegate UserA and communicate with the SAP J2EE Server through the portal URL.
3. We configured the SAP J2EE to accept Kerberos ticket as the login credential and make it create SAP Logon ticket. So SAP J2EE will return the SAP Logon ticket for current UserA based on the Kerberos ticket.
4. Server then reuses the SAP Logon ticket to connect to SAP ABAP Server.


To make the above scenario work, here is what we need to do.

1. Install a SAP J2EE Server, for example the SAP NW CE 7.1
2. Configure SAP J2EE Server to use ABAP as the user source
3. Configure the J2EE Server to accept Kerberos ticket as login mode
4. Configure I-Server and Developer to use Integrated authentication
5. Check if SAP J2EE Server accepts Kerberos ticket and generates SAP Logon Ticket
6. Grant current user on Developer as the user of SAP J2EE Server and ABAP server
7. Create a database instance for SAP BW with necessary files and connection string
8. Test if the SAP Kerberos transferring works

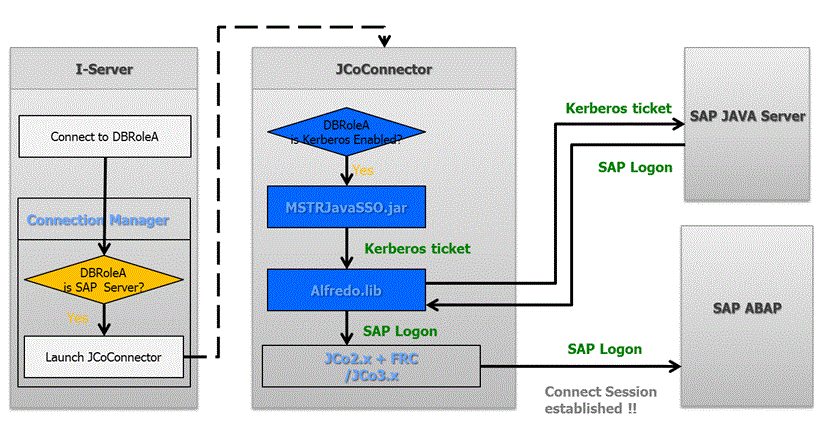

SAP Single Sign On – Detailed Workflow

The blue parts above are the implementation for this new feature.
The whole workflow includes the following steps.

1. When trying to connect to SAP ABAP Server, Connection Manager checks if the DBInstance is SAP type. If yes, it will launch JCoConnector. Otherwise, Connectors of other DB types will be launched.
2. JCoConnector checks if the DBIntance is Kerberos enabled (this is set in Project Configuration on Strategy Developer). If yes, Kerberos tickets will be sent to SAP Java Server (identified by EPURL in DBConnection strings).
3. If everything works well, SAP Java Server will return SAP Logon ticket converted from SAP Kerberos ticket to JCoConnector.
4. JCoConnector create the connect session with SAP ABAP server using SAP Logon ticket.

Environment Setup

ABAP Server

1. Create an account used to create trust relationship between ABAP and SAP Java Sever
--- Main steps

• Create a user (e.g. train10)
• Assign roles SAP_BC_JSF_COMMUNICATION (more details in SAP Help), SAP_BC_USR_CUA_CLIENT_RFC (if having CUA in place)
• Generate profiles for these role

--- Reference

• Contact SAP Technical Support for how to create account. Some sample steps in Strategy internal test are listed in document How to create SAP JSF user on ABAP Server.pdf  for reference.

 2. Import Certificate from SAP Java Server
--- Included in the next part “SAP Java Server”.

SAP Java Server

1. Install Oracle database and SAP NetWeaver (NW):
--- Main steps

• Install Oracle database
• Install SAP NetWeaver Composition Environment 7.1
• Use SAP Management console sapmmc to make sure server is start up

--- Reference

• Contact Oracle and SAP Technical Support for how to install Oracle database and SAP NW. Some sample steps in Strategy internal test are listed in document SAP_NW71_Installation.pdf  for reference.

2. Configure Kerberos
--- Main steps

• Start Java Server with Kerberos account
• Create Destination to ABAP Server
• Map ABAP user and Kerberos account (client)
• Deploy the SAP Add-On for SPNEGO module
• Generate key tab file and import into Java Server
• Configure UME User Store
• Build trust between Java and ABAP Server (export/import Certificate)

--- Reference

• Contact SAP Technical Support for how to configure Kerberos in SAP Java Server. Some sample steps in Strategy internal test are listed in document Configure Kerberos On SAP Java Server.pdf  for reference.

Strategy I-Server

1. I-Server Prerequisite
--- The Integrated authentication between I-Server and Developer should work fine (TN 19580: How to setup Kerberos (Integrated) authentication for the MicroStrategy Intelligence Server 9.x on Microsoft Windows operating systems).
--- The domain account(e.g. Tech_Services\jqian_kerb) used to run client (Developer or Browser) has already mapped to ABAP user (e.g. TRAIN1). The sample configuration steps in Strategy internal test can be found in step 7 in attached document Configure Kerberos On SAP Java Server.pdf  for reference.
2. Follow sample steps in attached document below to configure I-Server:
How to Configure I-Server to Support SSO to SAP.pdf

Configure DBInstance

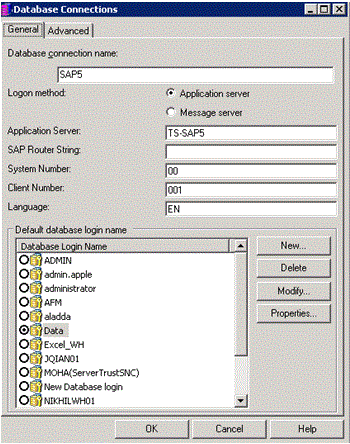

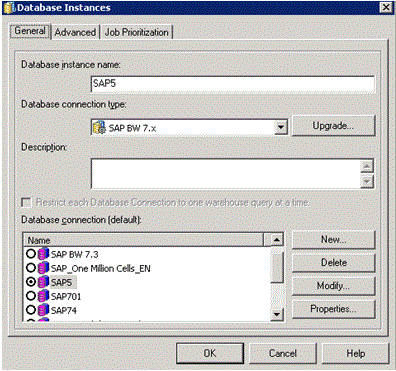

1. Create a Database instance on Developer for SAP BW with necessary info such as the app server, system number, client and language as shown below:

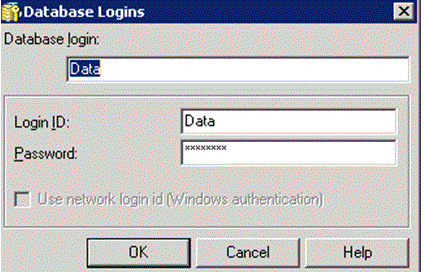

The DBLogin is not important and it should never be used if Kerberos authentication is enabled for this DBInstance in Project configuration.

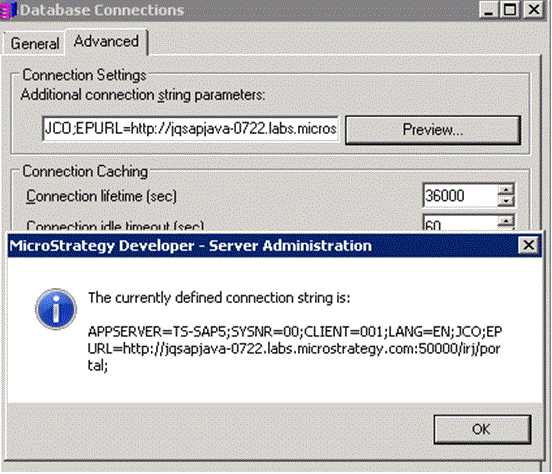

2. Add EPURL in connection string under “Advanced” tab. E.g. EPURL=http://jqsapjava-0722.labs.Strategy.com:50000/irj/portal;


NOTE: The format of SAP Java Server in this URL depends on the SPN added to the keytab file which is imported in to SAP Java Server. If the keytab for SAP Java Server is created with SPN = HTTP/SAPJavaServer.labs.microstrategy.com@LABS.MICROSTRATEGY.COM, then the EPURL should be http://sapjavaserver.labs.microstrategy.com:<port>/irj/portal. if the SPN = HTTP/SAPJavaServer@LABS.MICROSTRATEGY.COM, then the EPURL should be http://sapjavaserver:<port>/irj/portal. Otherwise, you will see checksum error in the log of SAP Java Server.


Enable Kerberos authentication for DBInstance in Project configuration

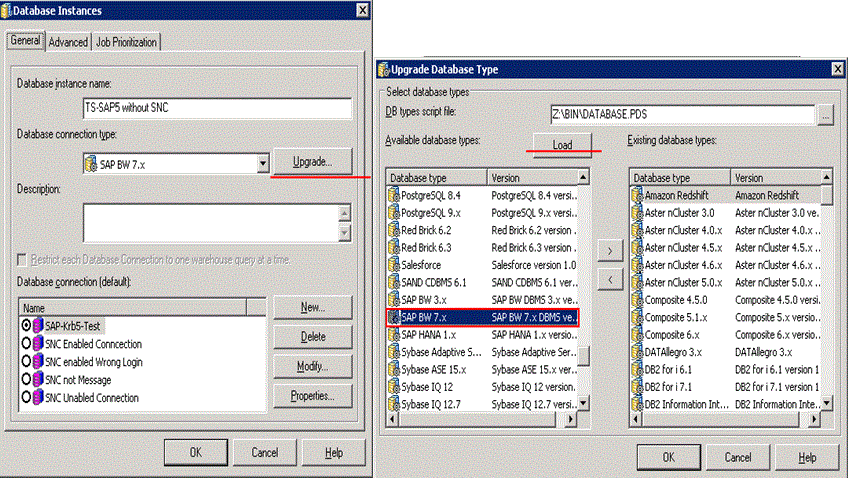

There is a new property “SupportsKerberos” added in Database.PDS for SAP type Database. For old MD, to take effect of this new property, user needs to upgrade the Database type manually by following KB5779 .


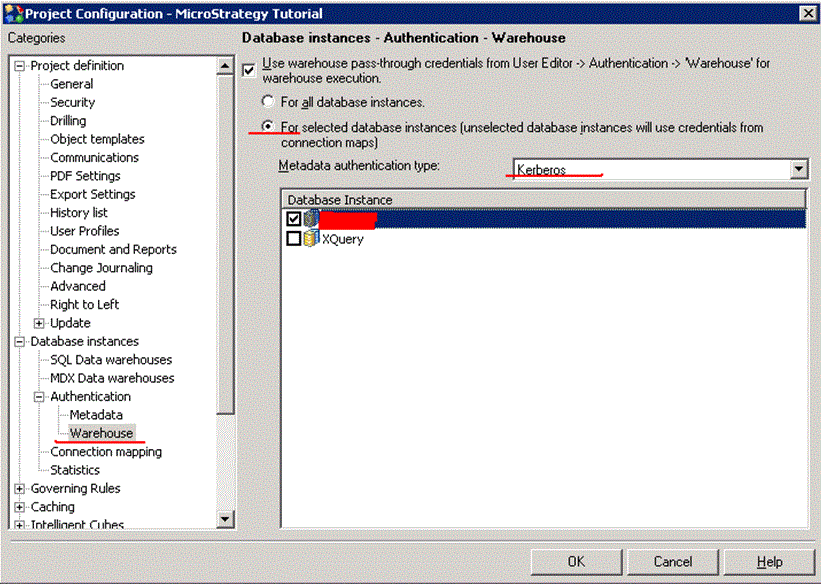

In Developer, choose a project, right-click on it and choose “Project Configuration->Database instances->Authentication->Database”, in the list of databases that support Kerberos authentication, choose the one just created. Re-start the I-Server to take effect.

Check SAP Java SSO is triggered

1. I-Server login account

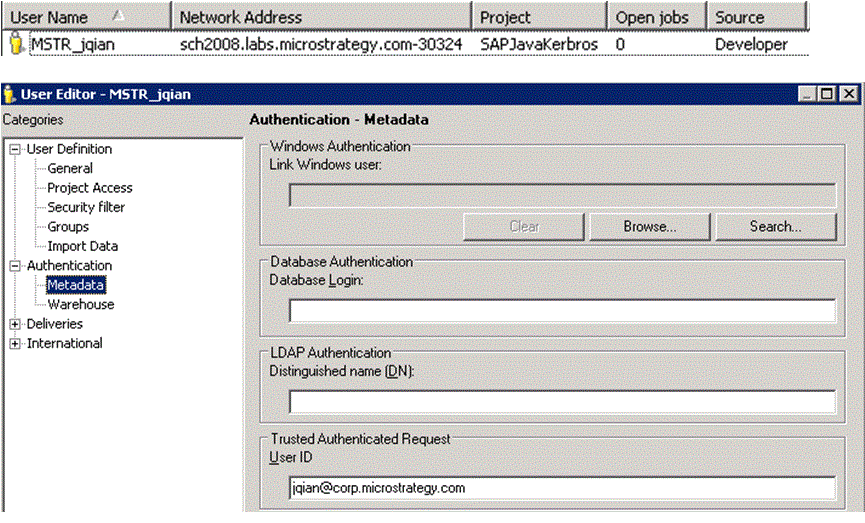

Run the I-Server and Developer/Web with your Kerberos account. For example, if we choose to login to Developer/Web with the integrated authentication. You should never be asked for username and password. Instead you will login to I-Server directly and see the related MSTR User in the System Monitors as the followings:

2. Database connection account in Monitor on I-Server

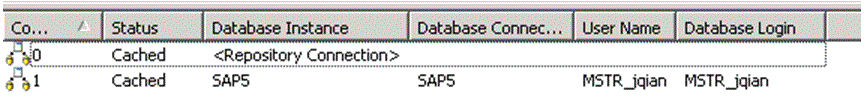

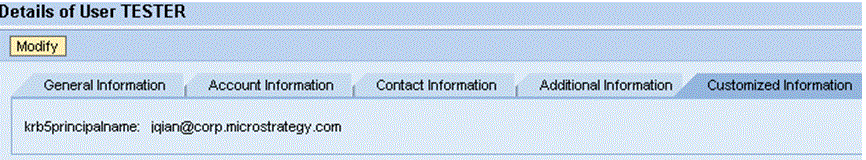

If this user jqian@corp.microstrategy.com is mapped to ABAP user (configured on UME of Java Server), after connecting to SAP ABAP Server, the database connection cache in Monitor should be as below.

3. JCo trace on I-Server


[JCoRFC] Initialize client with parameters: { jco.destination.userid=$MYSAPSSO2$, jco.client.lang=EN, jco.client.mysapsso2=AjExMDAgAA1wb3J0YWw6VEVTVEVSiAATYmFzaWNhdXRoZW50aWNhdGlvbgEABlRFU1RFUgIAAzAwMAMAA0NFMQQADDIwMTQxMDIxMDkwOQUABAAAAAgKAAZURVNURVL%2FAQUwggEBBgkqhkiG9w0BBwKggfMwgfACAQExCzAJBgUrDgMCGgUAMAsGCSqGSIb3DQEHATGB0DCBzQIBATAiMB0xDDAKBgNVBAMTA0NFMTENMAsGA1UECxMESjJFRQIBADAJBgUrDgMCGgUAoF0wGAYJKoZIhvcNAQkDMQsGCSqGSIb3DQEHATAcBgkqhkiG9w0BCQUxDxcNMTQxMDIxMDkwOTI2WjAjBgkqhkiG9w0BCQQxFgQURq8JHKIiq7P4mbpNU797uzfAgnwwCQYHKoZIzjgEAwQvMC0CFQD5w4wWw5t6!LXokXheph028mX9EQIUfulbwnq7j%2FsuYqLlEpViqibNEfA%3D, jco.client.ashost=TS-SAP5, jco.destination.auth_type=CONFIGURED_USER, jco.client.destination=ABAP_AS, jco.client.user=$MYSAPSSO2$, propertiesProvider=com.Strategy.Database.JCO.JCOConnection3$MyDestinationDataProvider, jco.client.sysnr=00, jco.client.passwd=*secret*, jco.client.client=001 }

…

…

[JCoRFC] Connection attributes:

DEST: ABAP_AS

OWN_HOST: JQPLOT

PARTNER_HOST: ts-sap5

SYSTNR: 00

SYSID: A01

CLIENT: 001

USER: $MYSAPSSO2$

#1.5#0050560142E800190000017900000CC0005F55D5E83A3A1C#1413882564177#/System/Security/Authentication#sap.com/irj#com.sap.engine.services.security.authentication.logincontext#Guest#664####f36a3220590111e483210050560142e8#HTTP Worker [2]##0#0#Info#1#com.sap.engine.services.security.authentication.logincontext#Plain###LOGIN.FAILED

User: N/A
Authentication Stack: ticket

Login Module  Flag  Initialize  Login  Commit  Abort   Details

1. com.sap.security.core.server.jaas.EvaluateTicketLoginModule SUFFICIENT ok          false                 true
2. com.sap.security.spnego.SPNEGOLoginModule REQUISITE ok          exception      true       Trigger SPNEGO authentication.
3. com.sap.security.core.server.jaas.CreateTicketLoginModule OPTIONAL ok          true       #

#1.5#0050560142E800240000010300000CC0005F55D5E83A41CC#1413882566068#/System/Security/Authentication#sap.com/irj#com.sap.engine.services.security.authentication.logincontext#TESTER#665##JQSAPJava450722_CE1_2683450##f47c6570590111e4b6ee0050560142e8#HTTP Worker [4]##0#0#Info#1#com.sap.engine.services.security.authentication.logincontext#Plain###LOGIN.OK

User: TESTER
Authentication Stack: ticket

Login Module  Flag   Initialize  Login  Commit   Abort  Details
1. com.sap.security.core.server.jaas.EvaluateTicketLoginModule SUFFICIENT ok          false      false
2. com.sap.security.spnego.SPNEGOLoginModule REQUISITE ok          true       true
3. com.sap.security.core.server.jaas.CreateTicketLoginModule OPTIONAL ok          true       true
Central Checks    true       #


5. User List View of ABAP Server

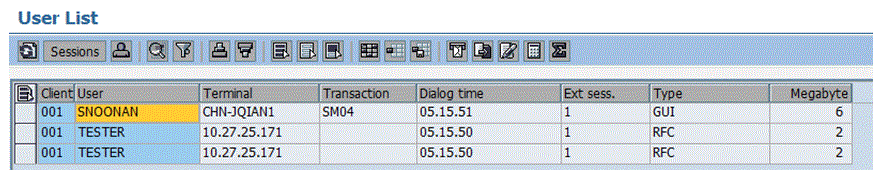

Transaction code SM04 can be used on SAP Logon to check the User List of ABAB Server.


Notes

1. The content of Jaas.conf used by IIS/Tomcat and SAPJavaSSO should be different.
So when configuring 4-T Kerberos along with SAPJavaSSO, we need to use different files for Web Server and SAPJavaSSO.
2. SAP Logon ticket is cached with Database Connection cache.

HelloKrb5 tool

HelloKrb5 tool is used to quickly test the configuration for transferring a Kerberos ticket to a SAP Logon token. It performs this task without relying on upper layer implementation of Strategy products. E.g. “SAP Single Sign On – High Level Workflow” part step 5 can use this tool to “Check if SAP J2EE Server accepts Kerberos ticket and generates SAP Logon Ticket”.
All the tool related description is contained in HelloKrb5.README  (Under %MSTR_CLASSPATH% for Windows, MSTR_HOME_PATH for Linux).
