SYMPTOM

When using the ReportDataService task to retrieve data with the Task API in Strategy Web 10.x, only subset of the rows is returned. This can bee seen in the rows XML tag in the task response highlighted below:


.....
<rows cn="2000">
<r fr="1">
<v id="BB:8D679D3C11D3E4981000E787EC6DE8A4:1:1:0:2:7796">Aaby</v>
<v>Alen</v>
<v id="BB:8D679D4611D3E4981000E787EC6DE8A4:1:1:0:2:25177">25177</v>
<v stid="c13">1</v>
<v stid="c17">1</v>
<v stid="c21">1</v>
<v stid="c24">1</v>
<v stid="c26">1</v>
<v stid="c28">8</v>
<v stid="c32">1</v>
<v stid="c36">100.00%</v>
<v stid="c40">1</v>
<v stid="c44">1</v>
<v stid="c46">0%</v>
<v stid="c48">0%</v>
</r>
.....
.......

<taskResponse statusCode="200">
<object-info>
<object-id>1C16CFCD4AAEEC29B1BB799C96C8EE4A</object-id>
<msg-id>504E9D024E8CB9EF02C07FA8F58E307A</msg-id>
<is-prompted>false</is-prompted>
<last-update-time>1529968148000</last-update-time>
<total-rows>140037</total-rows>
<total-columns>12</total-columns>
</object-info>
</taskResponse>

CAUSE

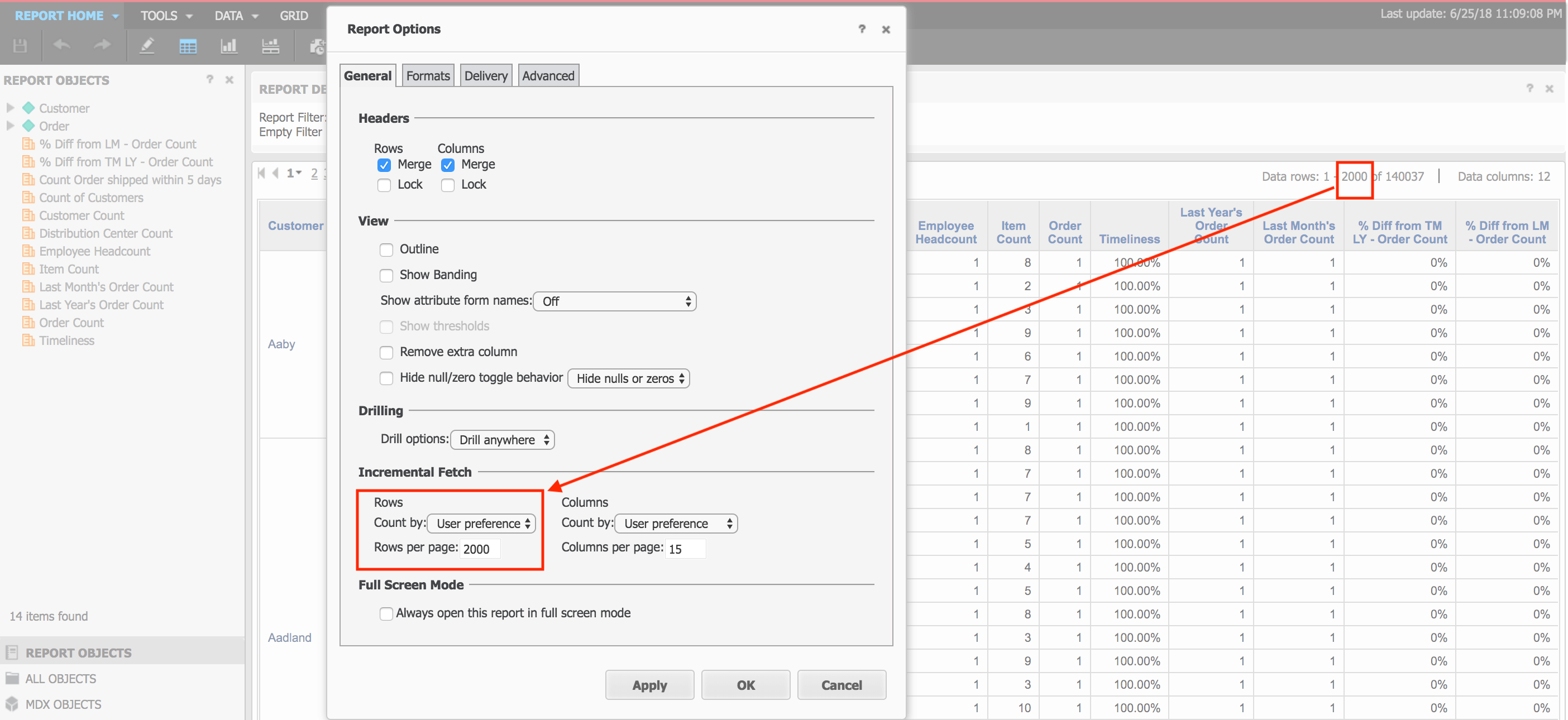

This is an expected behavior. By default, the ReportDataService task will comply to the governing settings set on the report, project, or Intelligence server level with regard to the number of rows it can retrieve. In this specific example, the 2000 number represents the Incremental Fetch rows per page setting:

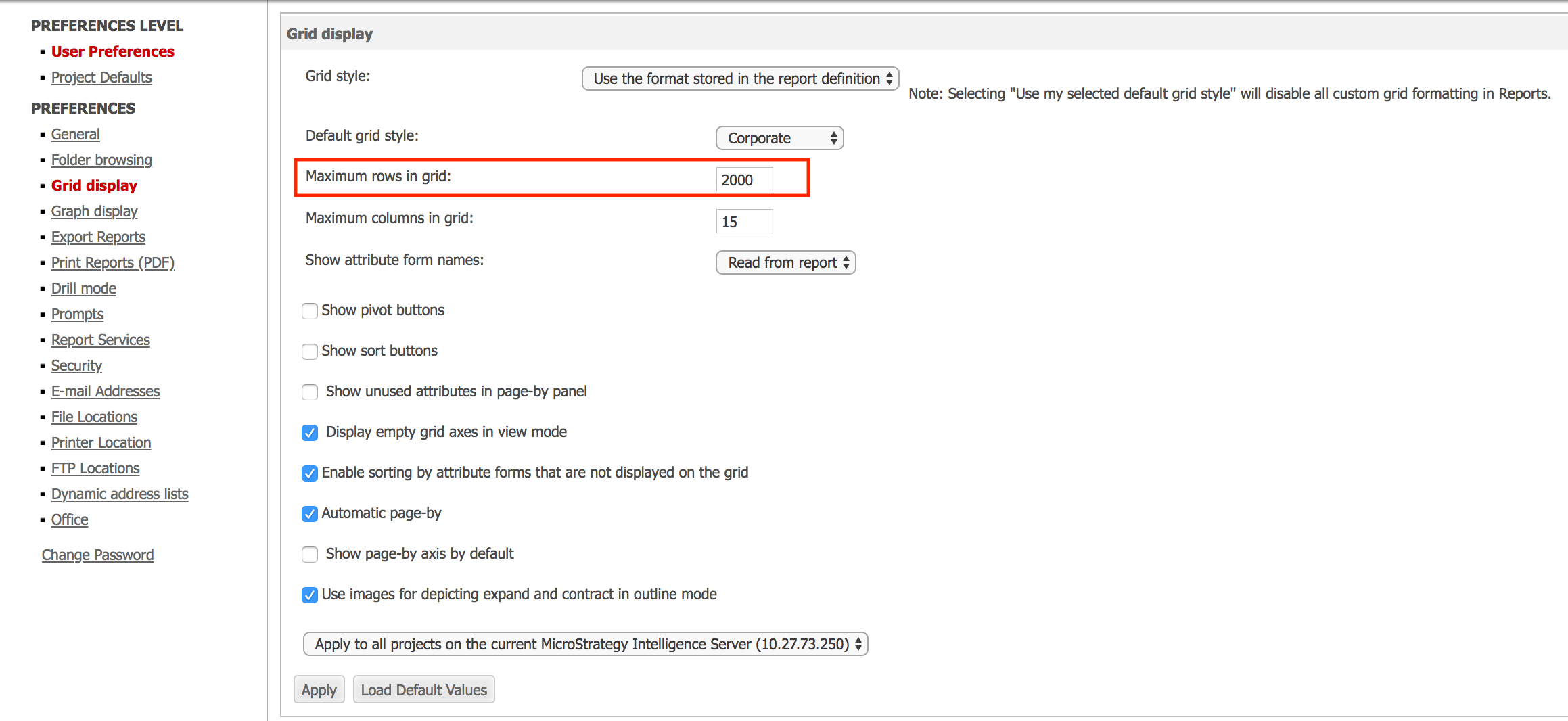

In this scenario, the setting is set to use the default value defined in the user preference level:

ACTION

There are a couple of options that can be taken to retrieve all row data:

1.  Increase the governing setting that the task is hitting. In this case, increasing the "Maximum rows in grid" user preference will suffice. However, users should be aware that this will affect Strategy Web as well.
2. In the ReportDataService set the maxRows to -1. However, this could cause performance issues as the number of rows being retrieved increases
3. The recommended approach is to retrieve the data in bulks leveraging the startRow and the maxRows parameters. Below are high level steps:

1. ​Run the ReportDataService using the ResultSetStatusStyle style to display information about the executed report to identify the total number of rows
2. Run the ReportDataService and set the startRow and the maxRows parameters in an iterative way until all rows are retrieved.

For more details on how to use this parameter refer to:
https://community.strategy.com/article/KB221858-How-to-return-last-5-rows-of-a-grid-in-report-with-URL
